Quarto Workshop

Tom Mock, RStudio PBC

2022-08-09

Hello Quarto

We assume

You know R

You know a little bit of Markdown

You want to learn about Quarto, the next-generation of RMarkdown

We’ll teach you

Quarto syntax and formats

More Markdown

Even more R along the way!

Find me at:

@thomas_mock

@jthomasmock

themockup.blog

Workshop Prep

Content Website: https://jthomasmock.github.io/quarto-r-medicine/
FULL workshop materials: rstd.io/get-started-quarto or on RStudio Cloud
Are you on the latest version of RStudio i.e. v2022.07.1 or later?

pkg_list <- c(
  "tidyverse", "gt", "gtExtras", "reactable", "ggiraph", "here", "quarto",
  "rmarkdown", "gtsummary", "palmerpenguins", "fs", "skimr"
  )
install.packages(pkg_list)

Great, let’s get started!

Our Turn

Local

Install/Open RStudio v2022.07.1
Clone the workshop: https://github.com/jthomasmock/quarto-workshop.git locally

RStudio Cloud

Use the pre-built RStudio Cloud with all the workshop materials already installed: https://rstudio.cloud/content/4332583

Hello Quarto

Quarto^® is an open-source scientific and technical publishing system built on Pandoc

You can weave together narrative text and code to produce elegantly formatted output as documents, web pages, blog posts, books and more.

How does RMarkdown work?

knitr started in 2011, RMarkdown in 2014

A diagram of how a RMD is turned into output formats via knitr and pandoc

Quarto, more than just `knitr`

We learned from 10 years of literate programming with knitr + rmarkdown

Quarto, more than just `knitr`

Quarto, more internals

Quarto uses an engine like knitr to execute code and generate a temporary output .md

The .md file is processed via Pandoc and Quarto’s Lua filters + Bootstrap CSS for HTML or LaTeX for PDF and converted to a final output format

Lua filters written by R/Python/Julia developers should be interchangeable between formats - typically not language specific!

Widgets

Quarto can support both htmlwidgets in R and Jupyter widgets for Python/Julia

Quarto includes native support for Observable JS, a set of enhancements to vanilla JavaScript created by Mike Bostock (also the author of D3). Observable JS is distinguished by its reactive runtime, which is especially well suited for interactive data exploration and analysis.

Quarto, also with Observable Javascript!

viewof temp = Inputs.range([0, 100], {step: 1, value: 34, label: htl.html`Temp &#x2103;`})

Converting temperature from ℃ to ℉

Celsius = ℃ and Fahrenheit = ℉.

```{ojs}
viewof temp = Inputs.range([0, 100], {step: 1, value: 34, label: htl.html`Temp &#x2103;`})
```

Converting temperature from &#x2103; to &#x2109; <br>
Celsius = ${d3.format(".0f")(temp)}&#x2103; and Fahrenheit = ${d3.format(".1f")(temp * 9/5 + 32)}&#x2109;.

Observable.js

viewof bill_length_min = Inputs.range(
  [32, 50],
  {value: 35, step: 1, label: "Bill length (min):"}
)
viewof islands = Inputs.checkbox(
  ["Torgersen", "Biscoe", "Dream"],
  { value: ["Torgersen", "Biscoe"],
    label: "Islands:"
  }
)

Plot
Data

Plot.rectY(filtered,
  Plot.binX(
    {y: "count"},
    {x: "body_mass", fill: "species", thresholds: 20}
  ))
  .plot({
    facet: {
      data: filtered,
      x: "sex",
      y: "species",
      marginRight: 80
    },
    marks: [
      Plot.frame(),
    ]
  }
)

Inputs.table(filtered)

data = FileAttachment("palmer-penguins.csv").csv({ typed: true })

filtered = data.filter(function(penguin) {
  return bill_length_min < penguin.bill_length &&
         islands.includes(penguin.island);
})

Quarto is a big universe!

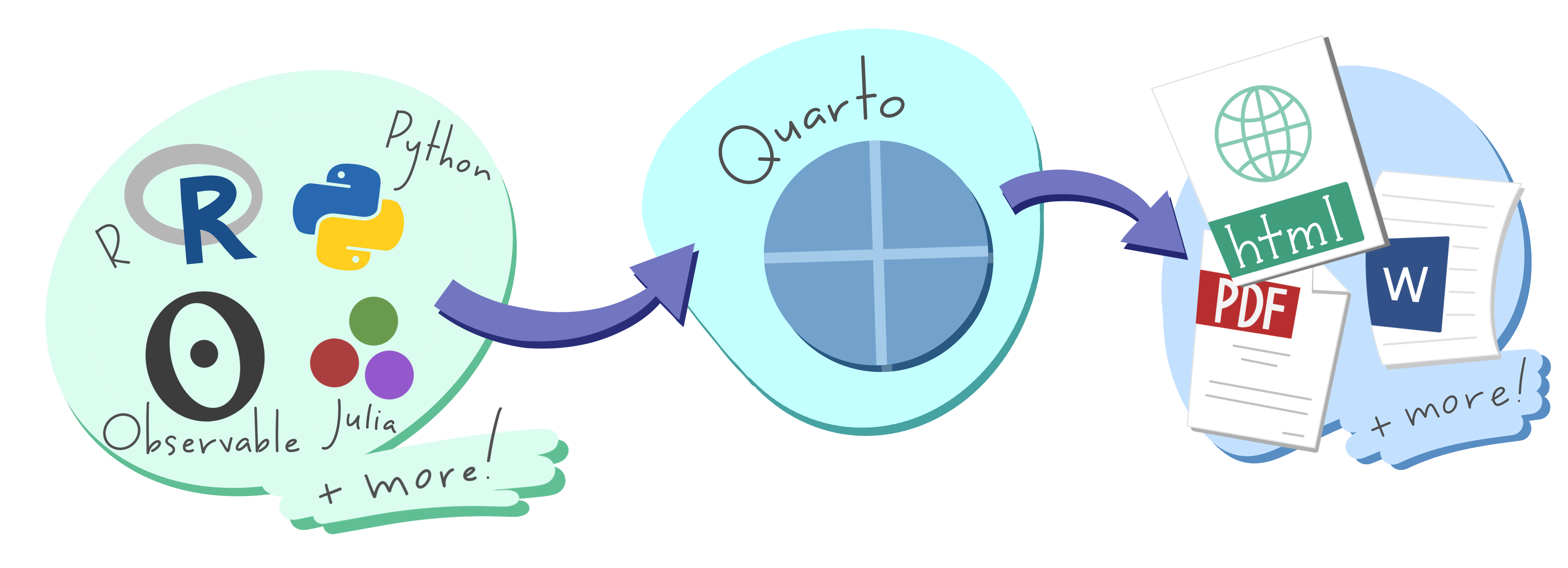

A diagram of the R, Python, Julia, Observable icons passed into Quarto to generate HTML, PDF, Word, and more!

So what is Quarto?

Quarto is a command line interface (CLI) that renders plain text formats (.qmd, .rmd, .md) OR mixed formats (.ipynb/Jupyter notebook) into static PDF/Word/HTML reports, books, websites, presentations and more

thomasmock$ quarto --help

  Usage:   quarto
  Version: 1.0.36

  Description:
    Quarto CLI

  Options:
    -h, --help     - Show this help.
    -V, --version  - Show the version number for this program.

  Commands:
    render          [input] [args...]   - Render input file(s) to various document types.
    preview         [file] [args...]    - Render and preview a document or website project.
    serve           [input]             - Serve a Shiny interactive document.
    create-project  [dir]               - Create a project for rendering multiple documents
    convert         <input>             - Convert documents to alternate representations.
    pandoc          [args...]           - Run the version of Pandoc embedded within Quarto.
    run             [script] [args...]  - Run a TypeScript, R, Python, or Lua script.
    install         <type> [target]     - Installs an extension or global dependency.
    publish         [provider] [path]   - Publish a document or project. Available providers include:
    check           [target]            - Verify correct functioning of Quarto installation.
    help            [command]           - Show this help or the help of a sub-command.

Comfort of your own workspace

A screenshot of a Quarto document rendered inside RStudio

A screenshot of a Quarto document rendered inside JupyterLab

A screenshot of a Quarto document rendered inside VSCode

RStudio Visual Editor

Our turn

Open quarto-workshop/03-authoring/visual-editor.qmd
Explore the UI elements and visual editor mode
Turn Visual Editor mode on/off and explore the sections
Render the document and compare the viewer to Visual Mode!

VS Code

VS Code YAML

Screenshot of a .ipynb with Quarto YAML edited in VSCode

VS Code, YAML Intelligence

Jupyter/Jupyter Lab

Jupyter

quarto preview notebook.ipynb --to html

Jupyter YAML

Treat YAML as a “raw cell” in Jupyter - Jupyter doesn’t care about YAML, but it’s needed/used by Quarto

Quarto, for collaboration

contents:
  - datalake-extracts-dplyr-aws.rmd
  - data-cleaning-siuba.ipynb
  - python-r-handoff.ipynb
  - computer-vision-r-torch.qmd

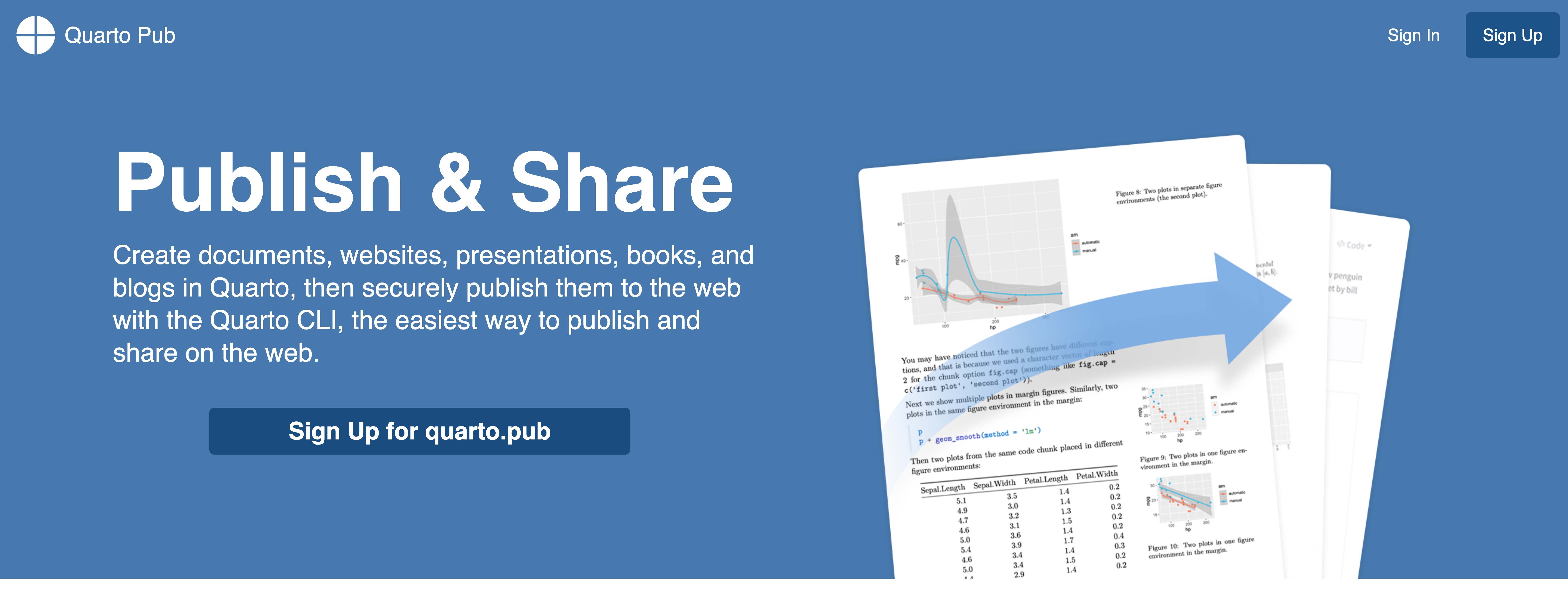

Quarto Publish

 terminal

quarto publish --help

  Usage:   quarto publish [provider] [path]
  Version: 1.0.36

  Description:
    Publish a document or project. Available providers include:

     - Quarto Pub (quarto-pub)
     - GitHub Pages (gh-pages)
     - RStudio Connect (connect)
     - Netlify (netlify)

What about for Data Science at Work?

Use Quarto in RStudio Workbench (v2022.07.1) and RStudio Connect (v2022.07.0)!

One install, “Batteries included”

Quarto is bundled and comes pre-installed with RStudio v2022.07.1 and beyond!

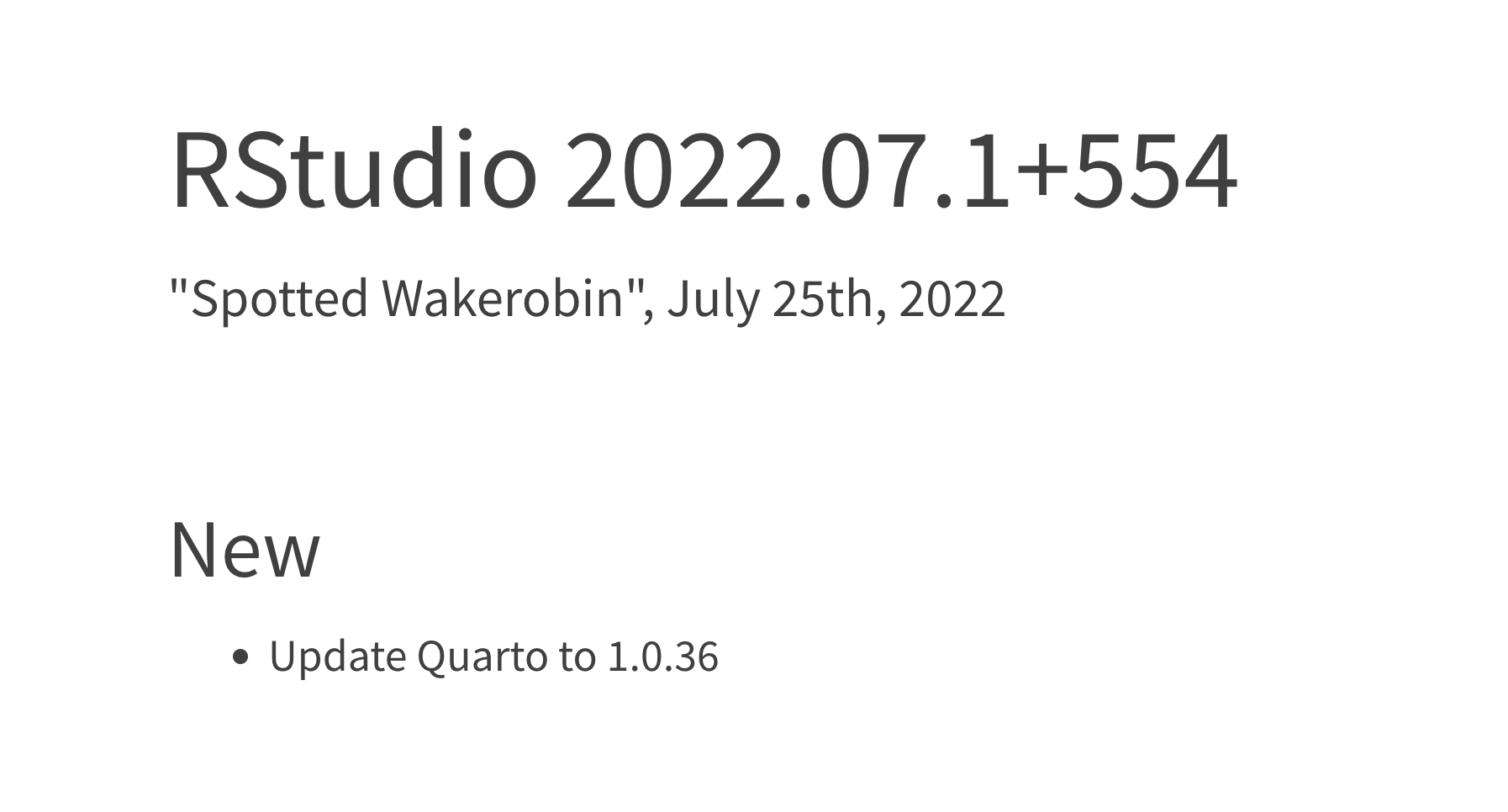

RStudio 2022.07.1+554 'Spotted Wakerobin', July 25th, 2022 New: Update Quarto to 1.0.36

Feature	R Markdown	Quarto
Basic Formats	html_document pdf_document word_document	html pdf docx
Beamer	beamer_presentation	beamer
PowerPoint	powerpoint_presentation	pptx
HTML Slides	xaringan revealjs	revealjs
Advanced Layout	tufte distill	Quarto Article Layout

Feature	R Markdown	Quarto
Cross References	html_document2 pdf_document2 word_document2	Quarto Crossrefs
Websites & Blogs	blogdown distill	Quarto Websites Quarto Blogs
Books	bookdown	Quarto Books
Interactivity	Shiny Documents	Quarto Interactive Documents
Paged HTML	pagedown	Summer 2022
Journal Articles	rticles	Summer 2022
Dashboards	flexdashboard	Fall 2022

What to do with my existing `.Rmd` or `.ipynb`?

For some of you - nothing changes! Keep using RMarkdown and Jupyter.

However, most existing .rmd or .ipynb can be rendered as-is via Quarto

 terminal

quarto render my-favorite.rmd --to html

Since Jupyter notebooks can either be treated as a linear document to be re-executed or an already evaluated document there are additional options like: --execute

 terminal

quarto render my-favorite.ipynb --to html --execute

Why Quarto, instead of RMarkdown

Batteries included, shared syntax
Choose your own editor and your preferred data science language
Better accessibility and richer features out of the box
More enhancements overtime - RMarkdown still maintained, but majority of new features built into Quarto

Collaboration with other colleagues in other languages - shared format, choose your editor and your native language

Rendering

A screenshot of the render button in RStudio

System shell via quarto render

 terminal

quarto render document.qmd # defaults to html
quarto render document.qmd --to pdf
quarto render document.qmd --to docx

R console via quarto R package

library(quarto)
quarto_render("document.qmd") # defaults to html
quarto_render("document.qmd", output_format = "pdf")

Change your mental model

Source

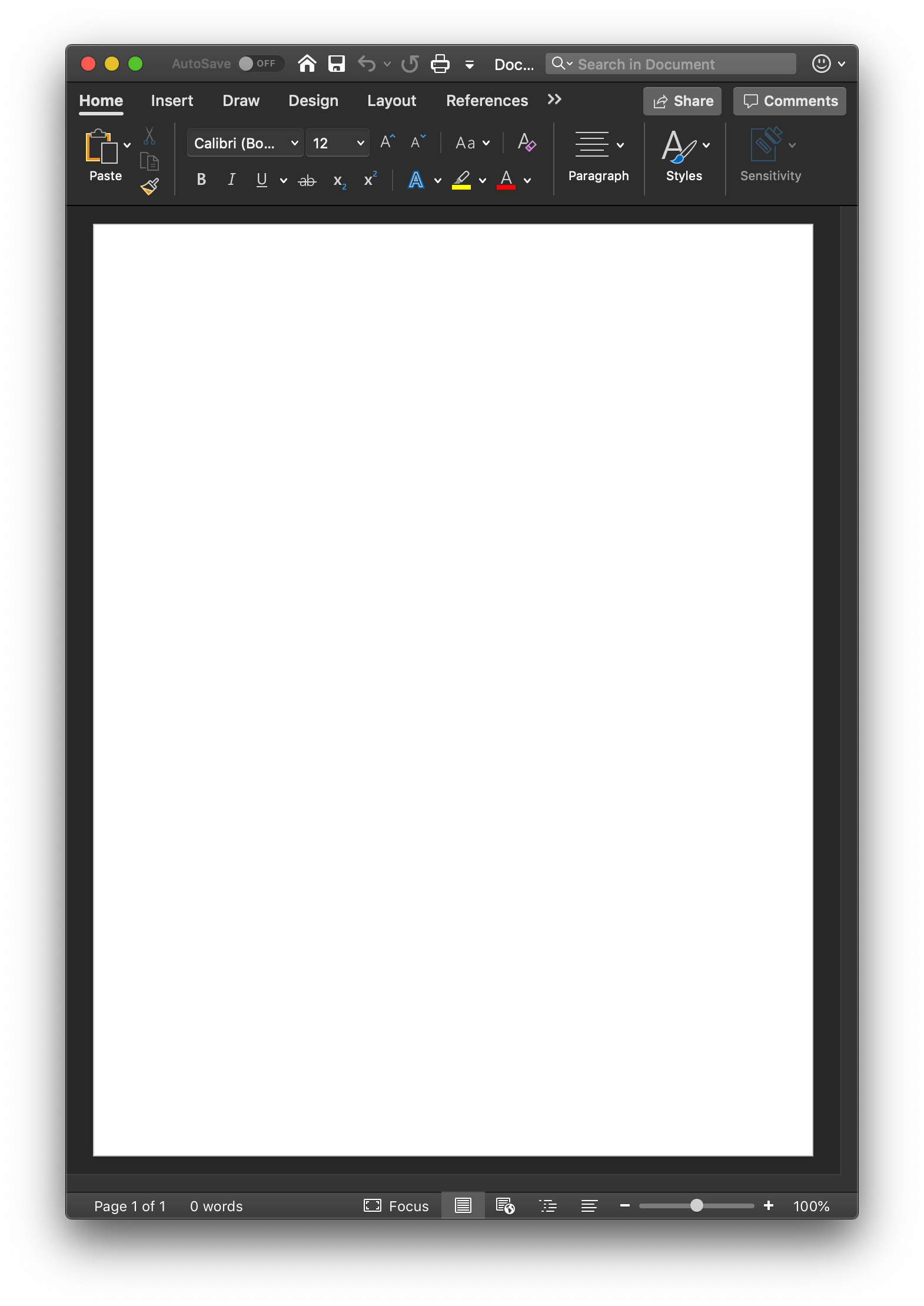

A blank Word document

Output

A blank Word document

Change your mental model

---
title: "ggplot2 demo"
author: "Norah Jones"
date: "5/22/2021"
format:
  html:
    fig-width: 8
    fig-height: 4
    code-fold: true
---

## Air Quality

@fig-airquality further explores the impact of temperature
  on ozone level.

```{r}
#| label: fig-airquality
#| fig-cap: Temperature and ozone level.
#| warning: false

library(ggplot2)
ggplot(airquality, aes(Temp, Ozone)) +

  geom_point() +
  geom_smooth(method = "loess"
)
```

A `.qmd` is a plain text file

Metadata (YAML)

format: html
engine: knitr

format: html
engine: jupyter

Code

```{r}
library(dplyr)
mtcars |>
  group_by(cyl) |>
  summarize(mean = mean(mpg))
```

```{python}
from siuba import *
(mtcars
  >> group_by(_.cyl)
  >> summarize(avg_mpg = _.mpg.mean()))
```

Text

# Heading 1
This is a sentence with some **bold text**, *italic text* and an
![image](image.png){fig-alt="Alt text for this image"}.

Metadata: YAML

The YAML metadata or header is:

processed in many stages of the rendering process and can influence the final document in many different ways. It is placed at the very beginning of the document and is read by each of Pandoc, Quarto and knitr. Along the way, the information that it contains can affect the code, content, and the rendering process.

YAML

---
title: "My Document"
format:
  html:
    toc: true
    code-fold: true
---

Markdown

Quarto is based on Pandoc and uses its variation of markdown as its underlying document syntax. Pandoc markdown is an extended and slightly revised version of John Gruber’s Markdown syntax.

Markdown is a plain text format that is designed to be easy to write, and, even more importantly, easy to read

Text Formatting

Markdown Syntax	Output
`italics and bold`	italics and bold
`superscript^2^ / subscript~2~`	superscript² / subscript₂
`~~strikethrough~~`	~~strikethrough~~
`verbatim code`	`verbatim code`

Headings

Markdown Syntax	Output
`# Header 1`	Header 1
`## Header 2`	Header 2
`### Header 3`	Header 3
`#### Header 4`	Header 4
`##### Header 5`	Header 5
`###### Header 6`	Header 6

Code

```{r}
#| output-location: column
#| label: fig-airquality
#| fig-cap: Temperature and ozone level.
#| warning: false

library(ggplot2)

ggplot(airquality, aes(Temp, Ozone)) +
  geom_point() +
  geom_smooth(method = "loess"
)
```

Code, more than just R

```{python}
#| eval: false
#| label: fig-polar
#| fig-cap: "A line plot on a polar axis"

import numpy as np
import matplotlib.pyplot as plt

r = np.arange(0, 2, 0.01)
theta = 2 * np.pi * r
fig, ax = plt.subplots(
  subplot_kw = {'projection': 'polar'}
)
ax.plot(theta, r)
ax.set_rticks([0.5, 1, 1.5, 2])
ax.grid(True)
plt.show()
```

What about the CLI?

Quarto is a command line interface (CLI) that renders plain text formats (.qmd, .rmd, .md) OR mixed formats (.ipynb/Jupyter notebook) into static PDF/Word/HTML reports, books, websites, presentations and more

thomasmock$ quarto --help

  Usage:   quarto
  Version: 1.0.36

  Description:
    Quarto CLI

  Options:
    -h, --help     - Show this help.
    -V, --version  - Show the version number for this program.

  Commands:
    render          [input] [args...]   - Render input file(s) to various document types.
    preview         [file] [args...]    - Render and preview a document or website project.
    serve           [input]             - Serve a Shiny interactive document.
    create-project  [dir]               - Create a project for rendering multiple documents
    convert         <input>             - Convert documents to alternate representations.
    pandoc          [args...]           - Run the version of Pandoc embedded within Quarto.
    run             [script] [args...]  - Run a TypeScript, R, Python, or Lua script.
    install         <type> [target]     - Installs an extension or global dependency.
    publish         [provider] [path]   - Publish a document or project. Available providers include:
    check           [target]            - Verify correct functioning of Quarto installation.
    help            [command]           - Show this help or the help of a sub-command.

Navigating in the terminal

Because Quarto is a command line interface (CLI), there are times you’ll need to use it via the terminal. A great overview of using the command line and navigating files/directories is available via the Data Carpentries or a great interactive tool for understanding commands: https://tldr.ostera.io

Command	Action
`pwd`	Print name of current working directory
`cd`	Change current working directory
`ls`	List directory contents
`quarto --help`	Return `quarto` help docs
`mkdir howdy`	Make a new folder/directory called “howdy”
`rm folder-name/some-file.qmd`	Delete `some-file.qmd` in the `folder-name` directory

Our Turn

In RStudio, open quarto-workshop/01-intro/history.qmd
Render with the RStudio Render -> button
Look at it and compare to Wikipedia source

Move to the integrated terminal and execute:
Render via terminal with quarto render history.qmd --to pdf
Compare to the HTML version

We assume

We’ll teach you

Workshop Prep

Our Turn

Local

RStudio Cloud

Hello Quarto

Quarto® is an open-source scientific and technical publishing system built on Pandoc

How does RMarkdown work?

Quarto, more than just knitr

Quarto, more than just knitr

Quarto, more than just knitr

Quarto, more internals

Widgets

Quarto, also with Observable Javascript!

Observable.js

Quarto is a big universe!

So what is Quarto?

Comfort of your own workspace

RStudio Visual Editor

Our turn

VS Code

VS Code YAML

VS Code, YAML Intelligence

Jupyter/Jupyter Lab

Jupyter

Jupyter YAML

Quarto, for collaboration

Quarto Publish

What about for Data Science at Work?

One install, “Batteries included”

What to do with my existing .Rmd or .ipynb?

Why Quarto, instead of RMarkdown

Rendering

Change your mental model

Change your mental model

A .qmd is a plain text file

Metadata: YAML

YAML

Markdown

Text Formatting

Headings

Header 1

Header 2

Header 3

Header 4

Header 5

Header 6

Code

Code, more than just R

What about the CLI?

Navigating in the terminal

Our Turn

Quarto^® is an open-source scientific and technical publishing system built on Pandoc

Quarto, more than just `knitr`

Quarto, more than just `knitr`

Quarto, more than just `knitr`

What to do with my existing `.Rmd` or `.ipynb`?

A `.qmd` is a plain text file
