RMarkdown:

reproducible reporting

Tom Mock, PhD • RStudio

2022-04-26

github.com/jthomasmock/rmd-nhs/

jthomasmock.github.io/rmd-nhs/index.html

Slides released under CC-BY 2.0   ]

A collection of wooden letters loosely arranged. The letters are used for stamps.
Image Credit: Bruno Martins, unsplash.com/photos/OhJmwB4XWLE
1 / 95

Resources

Workshop materials: on Github

Slides: jthomasmock.github.io/rmd-nhs/

Some content adapted from superstar Dr. Alison Hill CDC & R4Pharma: CC-BY

2 / 95
4 / 95

Why RMarkdown?

  1. Reproducibility
5 / 95

Why RMarkdown?

  1. Reproducibility

  2. Re-usability

5 / 95

Why RMarkdown?

  1. Reproducibility

  2. Re-usability

  3. Extensibility

5 / 95

Why RMarkdown?

  1. Reproducibility

  2. Re-usability

  3. Extensibility

  4. "Lazy" ability

5 / 95

Change your mental model

Source <-> Output

6 / 95

Change your mental model

Source <-> Output

Source -> Output

6 / 95

R Markdown

R Markdown documents are fully reproducible. Use a productive notebook interface to weave together narrative text and code to produce elegantly formatted output. Use multiple languages including R, Python, and SQL.

7 / 95

R Markdown

R Markdown documents are fully reproducible. Use a productive notebook interface to weave together narrative text and code to produce elegantly formatted output. Use multiple languages including R, Python, and SQL.

No more copy-paste, no more manually rebuilding analyses from disparate components, no more dread when the data is updated and you need to run an analysis.

7 / 95
8 / 95

Ease of Use VS Full Details

8 / 95

Pouring milk

A straight-forward task - pour the boxed milk into the glass.

9 / 95

Pouring milk

A straight-forward task - pour the boxed milk into the glass.

Easy to use

Person pouring milk with quite a bit of spilling

9 / 95

Pouring milk

A straight-forward task - pour the boxed milk into the glass.

Easy to use

Person pouring milk with quite a bit of spilling

Understanding the Full details

Person pouring box of milk with the cap facing up, resulting in no spilling.

9 / 95

Many RMarkdown Formats

Documents
Notebook Interactive R Notebooks
HTML HTML document w/ Bootstrap CSS
PDF PDF document (via LaTeX template)
Word Microsoft Word document (docx)
ODT OpenDocument Text document
RTF Rich Text Format document
Markdown Markdown document (various flavors)
Presentations
ioslides HTML presentation with ioslides
reveal.js HTML presentation with reveal.js
Slidy HTML presentation with W3C Slidy
Beamer PDF presentation with LaTeX Beamer
PowerPoint PowerPoint presentation
10 / 95

Many RMarkdown Formats

Documents
Notebook Interactive R Notebooks
HTML HTML document w/ Bootstrap CSS
PDF PDF document (via LaTeX template)
Word Microsoft Word document (docx)
ODT OpenDocument Text document
RTF Rich Text Format document
Markdown Markdown document (various flavors)
Presentations
ioslides HTML presentation with ioslides
reveal.js HTML presentation with reveal.js
Slidy HTML presentation with W3C Slidy
Beamer PDF presentation with LaTeX Beamer
PowerPoint PowerPoint presentation
Journals
distill Scientific and technical writing for the web
jss_article Journal of Statistical Software (JSS)
acm_article Association for Computing Machinery (ACM)
acs_article American Chemical Society (ACS) Journal
ctex Documents based on the LaTeX package ctex
elsevier_article Submissions to Elsevier journals
More
flexdashboard Interactive dashboards
bookdown HTML, PDF, ePub, and Kindle books
Websites Multi-page websites
blogdown Customizable websites and blogs
pkgdown Package documentation websites
Tufte Handout Handouts in the style of Edward Tufte
Package Vignette R package vignette (HTML)
Github Document GitHub Flavored Markdown document.
10 / 95

Anatomy of RMarkdown

  • Metadata (YAML)
---
output: html_document
---
11 / 95

Anatomy of RMarkdown

  • Metadata (YAML)
---
output: html_document
---
  • Code
```{r basicExample, echo = TRUE}
library(dplyr)
mtcars %>%
group_by(cyl) %>%
summarize(n = n(), mean = mean(mpg))
```
11 / 95

Anatomy of RMarkdown

  • Metadata (YAML)
---
output: html_document
---
  • Code
```{r basicExample, echo = TRUE}
library(dplyr)
mtcars %>%
group_by(cyl) %>%
summarize(n = n(), mean = mean(mpg))
```
  • Text
# Heading 1
This is a sentence with some **bold text**, some *italic text* and an [image](image.png).
11 / 95

Metadata: YAML

The YAML metadata or header is:

processed in many stages of the rendering process and can influence the final document in many different ways. It is placed at the very beginning of the document and is read by each of Pandoc, rmarkdown, and knitr. Along the way, the information that it contains can affect the code, content, and the rendering process. - RMarkdown Cookbook

12 / 95

Metadata: YAML

The YAML metadata or header is:

processed in many stages of the rendering process and can influence the final document in many different ways. It is placed at the very beginning of the document and is read by each of Pandoc, rmarkdown, and knitr. Along the way, the information that it contains can affect the code, content, and the rendering process. - RMarkdown Cookbook

A generic YAML follows a pattern like the below:

---
key: value
---

Valid YAML requires 3 dashes --- on either end, creating the YAML block, with key + value pairs assigned throughout.

12 / 95

Metadata: YAML

Specific metadata about the document and rendering options are included in this YAML header.

Note that if you want to find out what type of options are available, you can run ?rmarkdown::html_document() or ?rmarkdown::pdf_document(), etc, to show the specific rendering options for that specific output format. There is also a rmarkdown pkgdown site, so you can explore specific options there as well.

13 / 95

Output options

---
output: html_document
---

Image of the letter R slightly tilted, along with the various RMarkdown outputs scattered around it. It includes HTML logo, PDF, a report, a dashboard, Word, Tufte, ePUB, kindle and LATEX

14 / 95

Specify output options in YAML

---
title: My First RMarkdown Report
author: Tom Mock
output: html_document
---
15 / 95

Specify output options in YAML

---
title: My First RMarkdown Report
author: Tom Mock
output: html_document
---
---
title: My First RMarkdown Report
author: Tom Mock
output:
html_document:
toc: true
toc_float: true
theme: united
code_download: true
---
16 / 95

Specify output options in YAML

---
title: My First RMarkdown Report
author: Tom Mock
output: html_document
---
---
title: My First RMarkdown Report
author: Tom Mock
output:
html_document:
toc: true
toc_float: true
theme: united
code_download: true
---
---
title: My PDF RMarkdown Report
author: Tom Mock
output: pdf_document
---
16 / 95

Specify output options in YAML

---
title: My First RMarkdown Report
author: Tom Mock
output: html_document
---
---
title: My First RMarkdown Report
author: Tom Mock
output:
html_document:
toc: true
toc_float: true
theme: united
code_download: true
---
---
title: My PDF RMarkdown Report
author: Tom Mock
output: pdf_document
---
---
title: "My Presentation"
subtitle: "made with xaringan"
author: "Yihui Xie"
date: "2021-10-30"
output:
xaringan
---
17 / 95

Text

18 / 95

Text and Markdown text

  • Text is human language

  • Markdown is markup language

19 / 95

Text and Markdown text

  • Text is human language

  • Markdown is markup language

* _Text_ is **human language**
* _Markdown_ is **markup language**
19 / 95

Text and Markdown text

  • Text is human language

  • Markdown is markup language

* _Text_ is **human language**
* _Markdown_ is **markup language**

You can read all about Markdown via the Markdown guide or use the rmarkdown cheat sheet!

19 / 95

Headings for splitting up your document

# Header 1
## Header 2
### Header 3
#### Header 4
20 / 95

Headings for splitting up your document

# Header 1
## Header 2
### Header 3
#### Header 4

Header 1

Header 2

Header 3

Header 4

20 / 95

Headings for splitting up your document

21 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

22 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

IE I can report that there are r nrow(mtcars)

22 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

IE I can report that there are r nrow(mtcars)

Which returns 32.

22 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

IE I can report that there are r nrow(mtcars)

Which returns 32.

These inline texts can be as complex or simple as you like, and can also return R objects.

car_rows <- glue::glue("There are {nrow(mtcars)} rows in the `mtcars` dataset.")
22 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

IE I can report that there are r nrow(mtcars)

Which returns 32.

These inline texts can be as complex or simple as you like, and can also return R objects.

car_rows <- glue::glue("There are {nrow(mtcars)} rows in the `mtcars` dataset.")

r car_rows

22 / 95

More than just text

You can inline R code, so that you can programatically generate specific components of the document.

IE I can report that there are r nrow(mtcars)

Which returns 32.

These inline texts can be as complex or simple as you like, and can also return R objects.

car_rows <- glue::glue("There are {nrow(mtcars)} rows in the `mtcars` dataset.")

r car_rows

There are 32 rows in the mtcars dataset.

22 / 95

More than just text

Indeed, parents whose children are
vaccinated no longer have to worry about
their child's death or disability from:
- whooping cough,
- polio,
- diphtheria,
- hepatitis, or
- a host of other infections.
Vaccines are the most cost-effective health
care interventions there are. We have
three new, extremely effective vaccines to
roll out in developing countries:
1. pneumonia
1. rotavirus
1. meningitis A
23 / 95

More than just text

Indeed, parents whose children are
vaccinated no longer have to worry about
their child's death or disability from:
- whooping cough,
- polio,
- diphtheria,
- hepatitis, or
- a host of other infections.
Vaccines are the most cost-effective health
care interventions there are. We have
three new, extremely effective vaccines to
roll out in developing countries:
1. pneumonia
1. rotavirus
1. meningitis A

Indeed, parents whose children are
vaccinated no longer have to worry about
their child's death or disability from:

  • whooping cough,
  • polio,
  • diphtheria,
  • hepatitis, or
  • a host of other infections.

Vaccines are the most cost-effective health
care interventions there are. We have
three new, extremely effective vaccines to
roll out in developing countries:

  1. pneumonia
  2. rotavirus
  3. meningitis A
23 / 95

Images

![RMarkdown hex logo](https://raw.githubusercontent.com/rstudio/rmarkdown/main/man/figures/logo.png)
![Alt text](path-to-local-file.png)

RMarkdown hex logo

24 / 95

Images

![RMarkdown hex logo](https://raw.githubusercontent.com/rstudio/rmarkdown/main/man/figures/logo.png)
![Alt text](path-to-local-file.png)

RMarkdown hex logo

knitr::include_graphics("https://user-images.githubusercontent.com/163582/45438104-ea200600-b67b-11e8-80fa-d9f2a99a03b0.png")

24 / 95

RStudio 1.4 and beyond

RStudio v1.4 (and future versions) include a visual markdown editing mode. Write code, text, and markdown. See the results in real time!

A screenshot showing the conversion of markdown into it's formatted output inside the RStudio IDE

25 / 95

Visual Editor

  • The visual editor is more than just the ability to see the output in real time.
  • It also provides "word processor" like formatting of text, math, and other capabilities!

A screenshot of a RMarkdown document inside the RStudio visual editor. It highlights the text processing abilities and shortcuts.

26 / 95

Code chunks

27 / 95

Code chunks

Specified sections of the document that are used to evaluate code and optionally return outputs.

```{r, echo = FALSE}
mtcars %>%
distinct(cyl)
```
28 / 95

Code chunks

Specified sections of the document that are used to evaluate code and optionally return outputs.

```{r, echo = FALSE}
mtcars %>%
distinct(cyl)
```
mtcars %>%
distinct(cyl)
## cyl
## Mazda RX4 6
## Datsun 710 4
## Hornet Sportabout 8
28 / 95

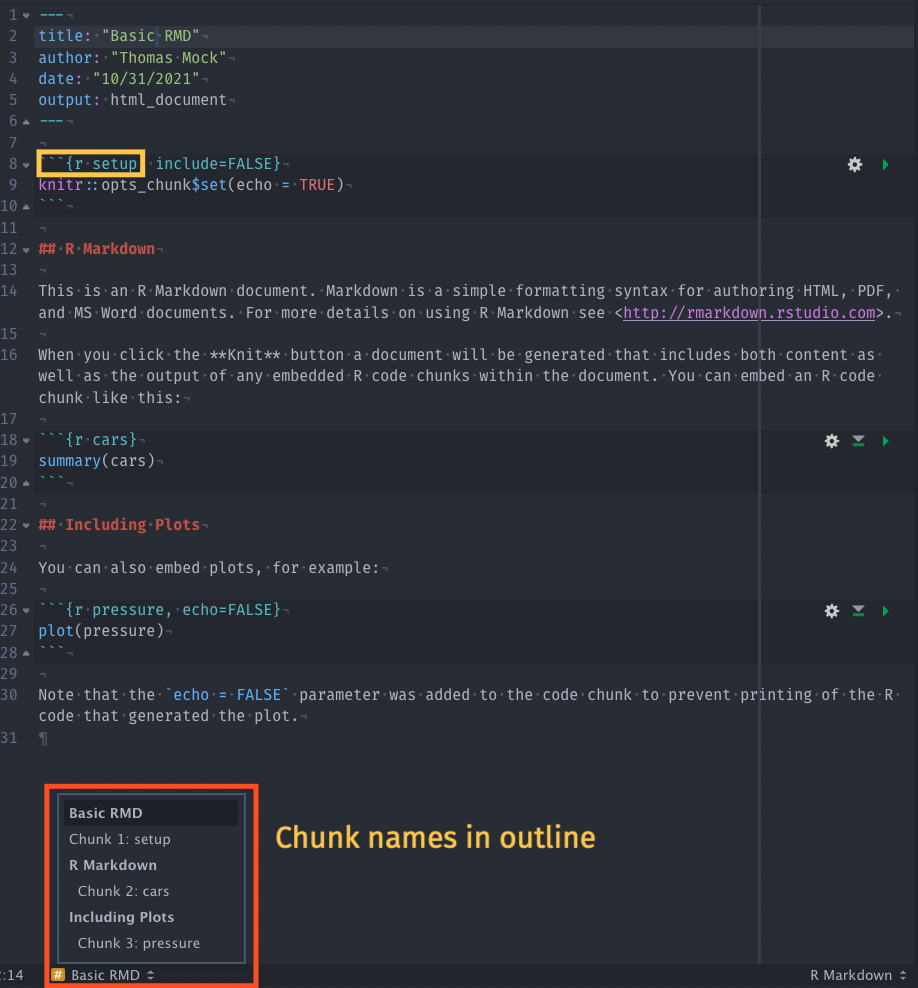

Anatomy of a code chunk

```{r car-stuff, echo = FALSE}
mtcars %>%
distinct(cyl)
```
29 / 95

Anatomy of a code chunk

```{r car-stuff, echo = FALSE}
mtcars %>%
distinct(cyl)
```
  • Has 3x backticks on each end ```
  • Place engine (r and chunk label label) between curly braces {r label}
  • Place options behind the label, after a comma: {r label, option1=value}
29 / 95

Code chunks

Code in a chunk auto print, unless saved to an object, which needs to be explicitly returned.

n_manufacturers <- n_distinct(gt::gtcars$mfr)
30 / 95

Code chunks

Code in a chunk auto print, unless saved to an object, which needs to be explicitly returned.

n_manufacturers <- n_distinct(gt::gtcars$mfr)
n_manufacturers
## [1] 19
30 / 95

Code chunks

Code in a chunk auto print, unless saved to an object, which needs to be explicitly returned.

n_manufacturers <- n_distinct(gt::gtcars$mfr)
n_manufacturers
## [1] 19
n_manufacturers <- n_distinct(gt::gtcars$mfr)
n_manufacturers
## [1] 19
30 / 95

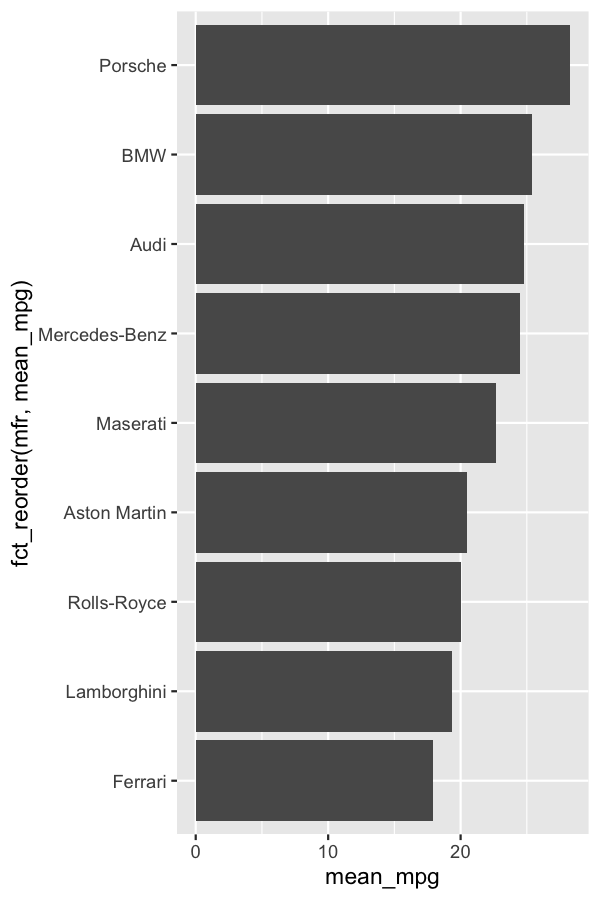

Code chunks return more than just data

car_data <- gt::gtcars %>%
filter(!is.na(mpg_h)) %>%
group_by(mfr) %>%
summarise(
mean_mpg = mean(mpg_h),
n_models = n_distinct(model)
) %>%
filter(n_models >= 2) %>%
arrange(desc(n_models))
ggplot(car_data, aes(x = mean_mpg,
y = fct_reorder(mfr, mean_mpg))) +
geom_col()
31 / 95

Code chunks return more than just data

car_data <- gt::gtcars %>%
filter(!is.na(mpg_h)) %>%
group_by(mfr) %>%
summarise(
mean_mpg = mean(mpg_h),
n_models = n_distinct(model)
) %>%
filter(n_models >= 2) %>%
arrange(desc(n_models))
ggplot(car_data, aes(x = mean_mpg,
y = fct_reorder(mfr, mean_mpg))) +
geom_col()
ggplot(car_data, aes(x = mean_mpg,
y = fct_reorder(mfr, mean_mpg))) +
geom_col()

31 / 95

Code chunks return more than just data

car_data %>%
gt::gt()
mfr mean_mpg n_models
Ferrari 17.88889 9
Audi 24.80000 5
BMW 25.40000 5
Aston Martin 20.50000 4
Porsche 28.25000 4
Lamborghini 19.33333 3
Maserati 22.66667 3
Mercedes-Benz 24.50000 2
Rolls-Royce 20.00000 2
32 / 95

Code chunks are controllable

There are many chunk options you can control via knitr (the package that provides core features of RMarkdown).

Link to all the knitr options

33 / 95

Code chunks are controllable

There are many chunk options you can control via knitr (the package that provides core features of RMarkdown).

Link to all the knitr options

```{r, eval = FALSE}
mtcars %>%
distinct(cyl)
```
33 / 95

Code chunks are controllable

There are many chunk options you can control via knitr (the package that provides core features of RMarkdown).

Link to all the knitr options

```{r, eval = FALSE}
mtcars %>%
distinct(cyl)
```
# This won't return, because the
# chunk is not evaluated
# via eval = FALSE
mtcars %>%
distinct(cyl)
33 / 95

Code chunks are controllable

Some examples

Option Description
fig.dim = c(4,6) Plots generated from this chunk will have a width of 4 and height of 6.
dpi = 150 Plots generated will have a dots per inch (pixel density) of 150
echo = FALSE Code will not be echoed (ie not shown)
eval = FALSE Nothing will be evaluated, but could still be printed
cache = TRUE Results will be cached, and chunk will not be run in subsequent renders, unless code is changed.
message = FALSE No messages will be printed
warning = FALSE No warnings will be printed
include = FALSE No ouputs/echo/messages/etc will be returned
34 / 95

Code chunks are controllable

```{r, fig.dim = c(6,4), dpi=150}
mtcars %>%
count(cyl) %>%
ggplot(aes(x = n, y = factor(cyl))) + geom_col()
```
35 / 95

Code chunks are controllable

```{r, fig.dim = c(6,4), dpi=150}
mtcars %>%
count(cyl) %>%
ggplot(aes(x = n, y = factor(cyl))) + geom_col()
```

New to knitr v1.35, there's now support for in-chunk option setting via special chunk option comments (ie #|). Very useful for longer options (like fig.cap or fig.alt), for setting many chunks at once, or for logical statements.

```{r}
#| fig.dim = c(6,4), dpi = 150,
#| fig.alt = "A simple barplot with the count of observations on the x-axis by the number of cylinders on the y-axis. There are 14 eight-cylinder cars, 7 six-cylinder cars, and 11 four-cylinder cars.\n
```
35 / 95

Code chunks are controllable

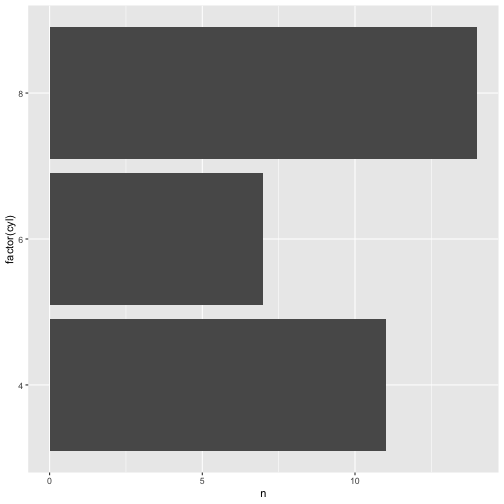

Default plot, too big and "fuzzy"

mtcars %>%
count(cyl) %>%
ggplot(aes(x = n, y = factor(cyl))) + geom_col()

36 / 95

Code chunks are controllable

Default plot, too big and "fuzzy"

mtcars %>%
count(cyl) %>%
ggplot(aes(x = n, y = factor(cyl))) + geom_col()

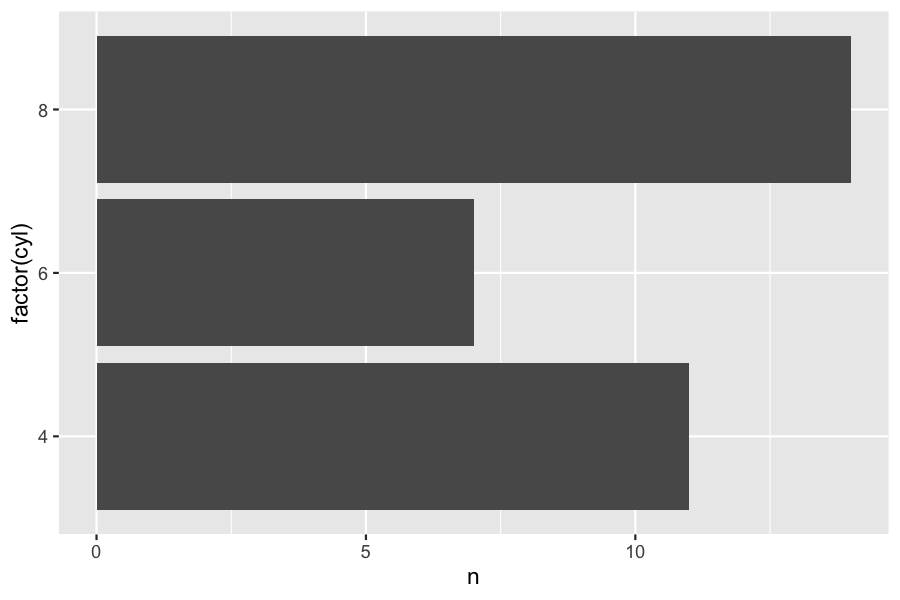

opts set: fig.dim = c(6,4) and dpi=150

mtcars %>%
count(cyl) %>%
ggplot(aes(x = n, y = factor(cyl))) + geom_col()

36 / 95

Chunk options can be globally set

```{r setup, include = FALSE}
knitr::opts_chunk$set(
echo = FALSE, fig.width = 6, dpi = 150
)
```
37 / 95

Chunk options can be globally set

```{r setup, include = FALSE}
knitr::opts_chunk$set(
echo = FALSE, fig.width = 6, dpi = 150
)
```

This is typically most useful in avoiding repeating yourself throughout a document and making the different components consistent between chunks without having to manually set these for EACH chunk.

37 / 95

Chunk option defaults

str(knitr::opts_chunk$get()[1:27])
## List of 27
## $ eval : logi TRUE
## $ echo : logi TRUE
## $ results : chr "markup"
## $ tidy : logi FALSE
## $ tidy.opts : NULL
## $ collapse : logi FALSE
## $ prompt : logi FALSE
## $ comment : chr "##"
## $ highlight : logi TRUE
## $ size : chr "normalsize"
## $ background : chr "#F7F7F7"
## $ strip.white : 'AsIs' logi TRUE
## $ cache : logi FALSE
## $ cache.path : chr "index_cache/html/"
## $ cache.vars : NULL
## $ cache.lazy : logi TRUE
## $ dependson : NULL
## $ autodep : logi FALSE
## $ cache.rebuild: logi FALSE
## $ fig.keep : chr "high"
## $ fig.show : chr "asis"
## $ fig.align : chr "default"
## $ fig.path : chr "index_files/figure-html/"
## $ dev : chr "png"
## $ dev.args : NULL
## $ dpi : num 72
## $ fig.ext : NULL
38 / 95

Chunk option defaults

str(knitr::opts_chunk$get()[1:27])
## List of 27
## $ eval : logi TRUE
## $ echo : logi TRUE
## $ results : chr "markup"
## $ tidy : logi FALSE
## $ tidy.opts : NULL
## $ collapse : logi FALSE
## $ prompt : logi FALSE
## $ comment : chr "##"
## $ highlight : logi TRUE
## $ size : chr "normalsize"
## $ background : chr "#F7F7F7"
## $ strip.white : 'AsIs' logi TRUE
## $ cache : logi FALSE
## $ cache.path : chr "index_cache/html/"
## $ cache.vars : NULL
## $ cache.lazy : logi TRUE
## $ dependson : NULL
## $ autodep : logi FALSE
## $ cache.rebuild: logi FALSE
## $ fig.keep : chr "high"
## $ fig.show : chr "asis"
## $ fig.align : chr "default"
## $ fig.path : chr "index_files/figure-html/"
## $ dev : chr "png"
## $ dev.args : NULL
## $ dpi : num 72
## $ fig.ext : NULL
str(knitr::opts_chunk$get()[28:53])
## List of 26
## $ fig.width : num 7
## $ fig.height: num 7
## $ fig.env : chr "figure"
## $ fig.cap : NULL
## $ fig.scap : NULL
## $ fig.lp : chr "fig:"
## $ fig.subcap: NULL
## $ fig.pos : chr ""
## $ out.width : NULL
## $ out.height: NULL
## $ out.extra : NULL
## $ fig.retina: num 1
## $ external : logi TRUE
## $ sanitize : logi FALSE
## $ interval : num 1
## $ aniopts : chr "controls,loop"
## $ warning : logi TRUE
## $ error : logi FALSE
## $ message : logi TRUE
## $ render : NULL
## $ ref.label : NULL
## $ child : NULL
## $ engine : chr "R"
## $ split : logi FALSE
## $ include : logi TRUE
## $ purl : logi TRUE
38 / 95

Chunks can be named

  • Useful for managing your longer documents (RStudio outline)

A screenshot of a RMarkdown document inside RStudio. The screenshot highlights the automatically generated document outline for each chunk name.

39 / 95

Chunks can be named

  • Useful for managing your longer documents (RStudio outline)

A screenshot of a RMarkdown document inside RStudio. The screenshot highlights the automatically generated document outline for each chunk name.

  • Useful for troubleshooting (ie where is the document failing on render)
label: unnamed-chunk-23
|..............................| 83%
ordinary text without R code
|..............................| 85%
label: unnamed-chunk-24 (with options)
List of 2
$ fig.dim: num [1:2] 6 4
$ dpi : num 150
|..............................| 86%
ordinary text without R code
39 / 95

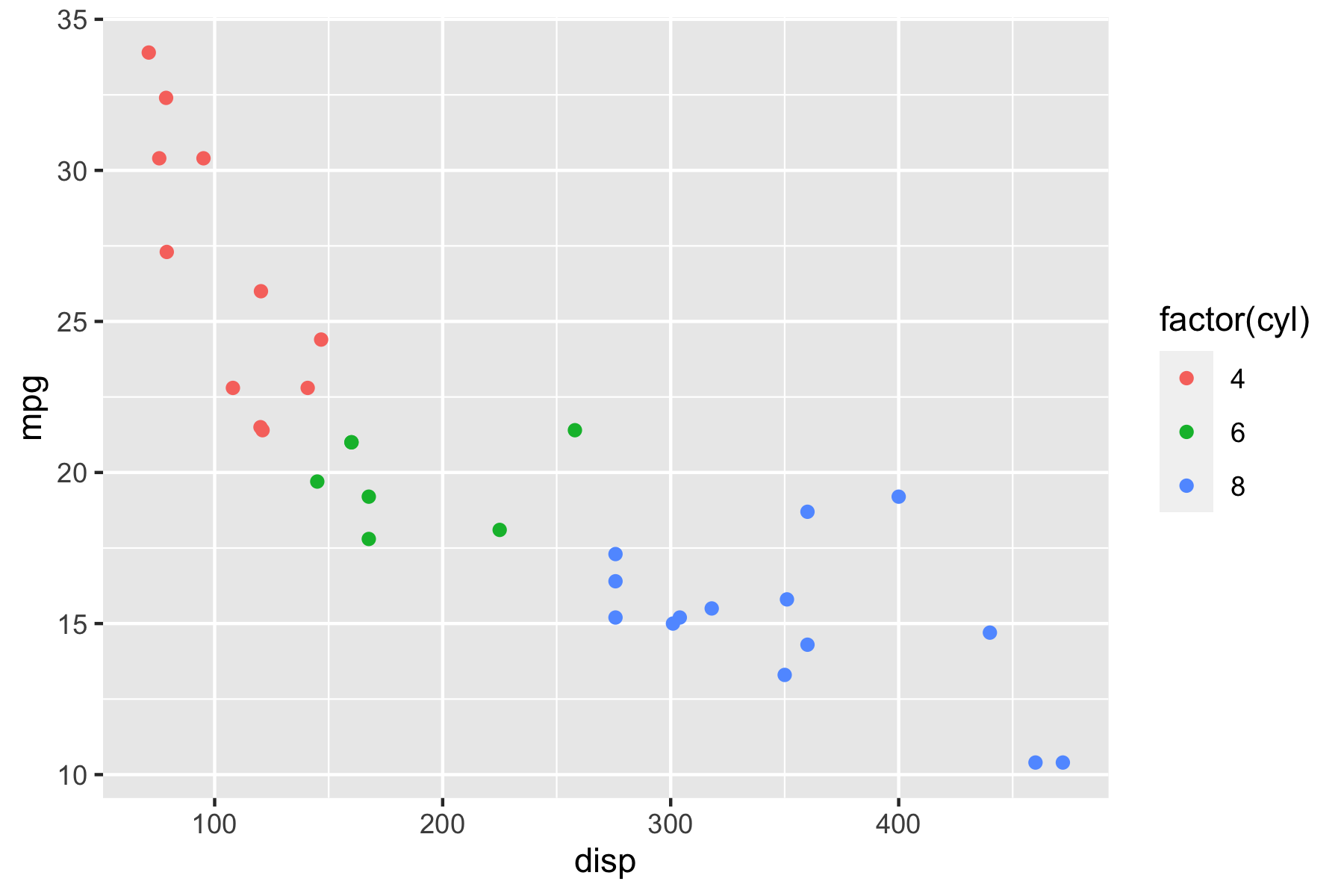

Named chunks can be re-used!

```{r myPlt, eval = FALSE}
ggplot(mtcars, aes(x = disp, y = mpg,
color = factor(cyl))) +
geom_point()
```

Note that you when using named chunks you can't alter the internal code, only the chunk options. This is necessary because you are referencing the initially defined code in that chunk.

40 / 95

Named chunks can be re-used!

```{r myPlt, eval = FALSE}
ggplot(mtcars, aes(x = disp, y = mpg,
color = factor(cyl))) +
geom_point()
```

Note that you when using named chunks you can't alter the internal code, only the chunk options. This is necessary because you are referencing the initially defined code in that chunk.

```{r myPlt, dpi=300,fig.dim=c(6,4)}
```

40 / 95

Chunk names, good and bad

Good

  • chunk
  • myChunk
  • my-chunk
  • mychunk1
41 / 95

Chunk names, good and bad

Good

  • chunk
  • myChunk
  • my-chunk
  • mychunk1

Bad

(These will fail)

  • my_chunk
  • my chunk
41 / 95

The setup chunk

```{r setup, include=FALSE}
knitr::opts_chunk$set(
collapse = TRUE,
comment = "#>",
out.width = "100%"
)
```
42 / 95

The setup chunk

```{r setup, include=FALSE}
knitr::opts_chunk$set(
collapse = TRUE,
comment = "#>",
out.width = "100%"
)
```
  • A special chunk label: setup
  • Typically the first chunk
  • All following chunks will use these options (i.e., sets global chunk options)
  • Tip: set include=FALSE
  • You can (and should) use individual chunk options too
42 / 95

Chunks don't have to be R

```{python}
x = 42 * 2
print(x)
```
```{bash}
echo "Hello Bash!"
cat flights1.csv flights2.csv > flights.csv
```
43 / 95

Chunks don't have to be R

```{python}
x = 42 * 2
print(x)
```
```{bash}
echo "Hello Bash!"
cat flights1.csv flights2.csv > flights.csv
```
```{r}
library(DBI)
db = dbConnect(RSQLite::SQLite(),
dbname = "sql.sqlite")
```
```{sql, connection=db}
SELECT * FROM trials
```
43 / 95

Chunk language engines

names(knitr::knit_engines$get())
## [1] "awk" "bash" "coffee" "gawk" "groovy" "haskell"
## [7] "lein" "mysql" "node" "octave" "perl" "psql"
## [13] "Rscript" "ruby" "sas" "scala" "sed" "sh"
## [19] "stata" "zsh" "asis" "asy" "block" "block2"
## [25] "bslib" "c" "cat" "cc" "comment" "css"
## [31] "ditaa" "dot" "embed" "exec" "fortran" "fortran95"
## [37] "go" "highlight" "js" "julia" "python" "R"
## [43] "Rcpp" "sass" "scss" "sql" "stan" "targets"
## [49] "tikz" "verbatim" "glue" "glue_sql" "gluesql"
44 / 95

Time for a break!

45 / 95

Using RMarkdown

46 / 95

Use an RStudio Project for your analysis!

One day you will need to quit R, go do something else and return to your analysis the next day. One day you will be working on multiple analyses simultaneously that all use R and you want to keep them separate. One day you will need to bring data from the outside world into R and send numerical results and figures from R back out into the world. To handle these real life situations, you need to make two decisions:
1: What about your analysis is “real”, i.e. what will you save as your lasting record of what happened?
2: Where does your analysis “live”? - Hadley Wickham, R4DS

47 / 95

Use an RStudio Project for your analysis!

One day you will need to quit R, go do something else and return to your analysis the next day. One day you will be working on multiple analyses simultaneously that all use R and you want to keep them separate. One day you will need to bring data from the outside world into R and send numerical results and figures from R back out into the world. To handle these real life situations, you need to make two decisions:
1: What about your analysis is “real”, i.e. what will you save as your lasting record of what happened?
2: Where does your analysis “live”? - Hadley Wickham, R4DS

RStudio > New Project - this gives you a lightweight environment for managing your data analysis code, data, and outputs, that can be shared across teams (ie via version control, shared drives, etc)

47 / 95

Use an RStudio Project for your analysis!

One day you will need to quit R, go do something else and return to your analysis the next day. One day you will be working on multiple analyses simultaneously that all use R and you want to keep them separate. One day you will need to bring data from the outside world into R and send numerical results and figures from R back out into the world. To handle these real life situations, you need to make two decisions:
1: What about your analysis is “real”, i.e. what will you save as your lasting record of what happened?
2: Where does your analysis “live”? - Hadley Wickham, R4DS

RStudio > New Project - this gives you a lightweight environment for managing your data analysis code, data, and outputs, that can be shared across teams (ie via version control, shared drives, etc)

Expanded in great detail in R4DS

47 / 95

RMarkdown rendering

Rendering a RMarkdown doc is also called "knitting" as you are knitting all the components together.

48 / 95

RMarkdown rendering

Rendering a RMarkdown doc is also called "knitting" as you are knitting all the components together.

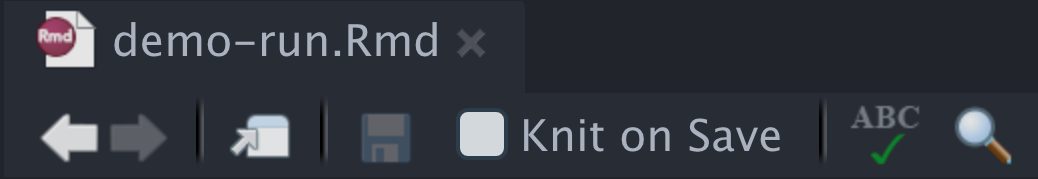

  • You can use the RStudio button (Knit)
  • You can use rmarkdown::render("file-name.rmd")
48 / 95

RMarkdown paths

RMarkdown starts in it's own directory.

#> tom/demo-project
#> ├── analysis
#> │ └── report.Rmd
#> ├── data
#> │ └── penguins.csv
#> ├── demo-project.Rproj
#> └── prepare
#> └── penguins.R
# inside report.Rmd
getwd()
#> [1] "Users/thomasmock/demo-project/analysis"
49 / 95

RMarkdown paths

RMarkdown starts in it's own directory.

#> tom/demo-project
#> ├── analysis
#> │ └── report.Rmd
#> ├── data
#> │ └── penguins.csv
#> ├── demo-project.Rproj
#> └── prepare
#> └── penguins.R
# inside report.Rmd
getwd()
#> [1] "Users/thomasmock/demo-project/analysis"

Use the here package to reference files in other directories, as here references the project directory by default.

my_csv <- here::here("data", "penguins.csv")
49 / 95

RMarkdown paths

RMarkdown starts in it's own directory.

#> tom/demo-project
#> ├── analysis
#> │ └── report.Rmd
#> ├── data
#> │ └── penguins.csv
#> ├── demo-project.Rproj
#> └── prepare
#> └── penguins.R
# inside report.Rmd
getwd()
#> [1] "Users/thomasmock/demo-project/analysis"

Use the here package to reference files in other directories, as here references the project directory by default.

my_csv <- here::here("data", "penguins.csv")
49 / 95

Creating a document

In RStudio:

  • File > New RMarkdown
  • Cmd + Shift + P > Create a new R Markdown document
  • rstudioapi::documentNew("---", type = "rmarkdown")
50 / 95

Creating a document

In RStudio:

  • File > New RMarkdown
  • Cmd + Shift + P > Create a new R Markdown document
  • rstudioapi::documentNew("---", type = "rmarkdown")

DEMO 💻

50 / 95

Insert new chunk

  • Click +C (Insert new chunk buttom)
  • Cmd + Shift + P > Insert a new code chunk
  • Command (or Cmd) + Option (or Alt) + i (Mac)
  • Ctrl + Alt + i (Windows/Linux)
51 / 95

Insert new chunk

  • Click +C (Insert new chunk buttom)
  • Cmd + Shift + P > Insert a new code chunk
  • Command (or Cmd) + Option (or Alt) + i (Mac)
  • Ctrl + Alt + i (Windows/Linux)

DEMO 💻

51 / 95

Anatomy of a RMarkdown in RStudio

52 / 95

Anatomy of a RMarkdown in RStudio

A screenshot of the RMarkdown bar inside RStudio

  • Undo-redo buttons
  • Open in it's own Source window
  • Save
  • Automatically Knit/Render on save
  • Initiate spell checking
  • Find or Find and Replace
53 / 95

Anatomy of a RMarkdown in RStudio

A screenshot of the knit menu for RMarkdown inside RStudio

54 / 95

Anatomy of a RMarkdown in RStudio

A screenshot of the knit menu for RMarkdown inside RStudio

  • Knit to specific defaults (HTML, PDF, Word)
  • Knit with parameters
  • Knit directory controls
  • Clear knit cache (ie clear the outputs)
54 / 95

Anatomy of a RMarkdown in RStudio

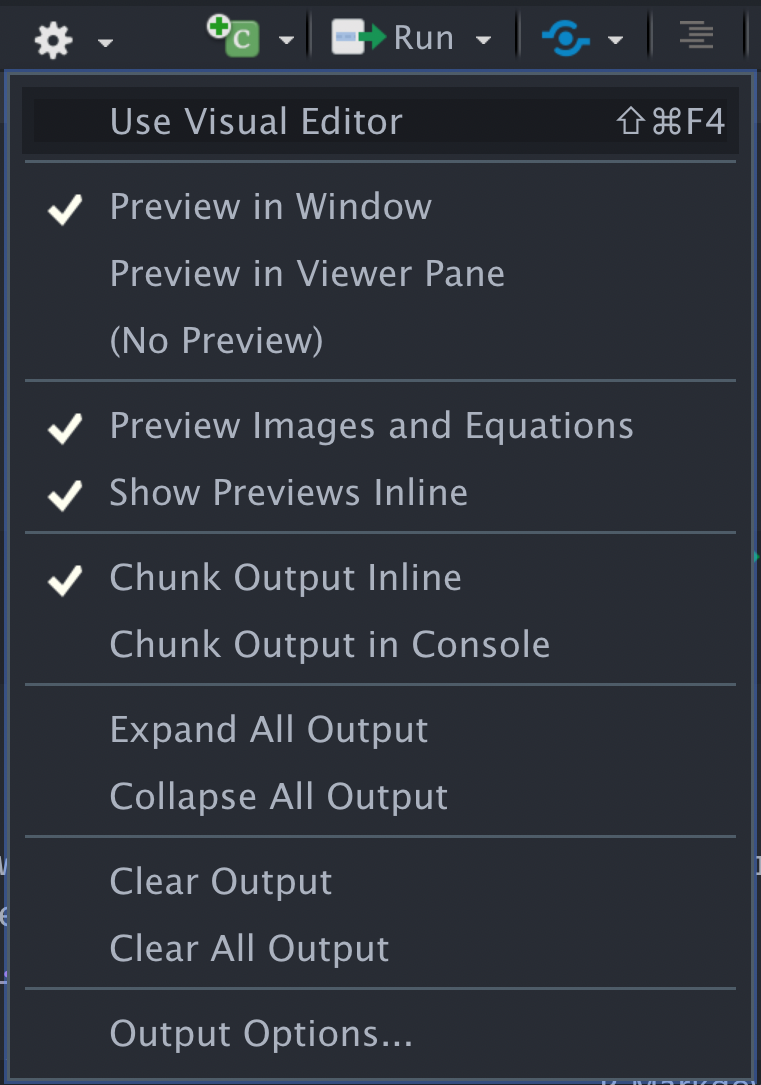

Screenshot of the RMarkdown settings options in RStudio

55 / 95

Anatomy of a RMarkdown in RStudio

Screenshot of the RMarkdown settings options in RStudio

  • Use Visual Editor Mode
  • Preview plots inline (ie Window) or in the RStudio Plot/Viewer pane
  • Preview outputs
  • Chunk output to R console or inline in notebook
  • Expand output/collapse output
  • Clear output for that chunk or globally
  • Output options
55 / 95

Anatomy of a RMarkdown in RStudio

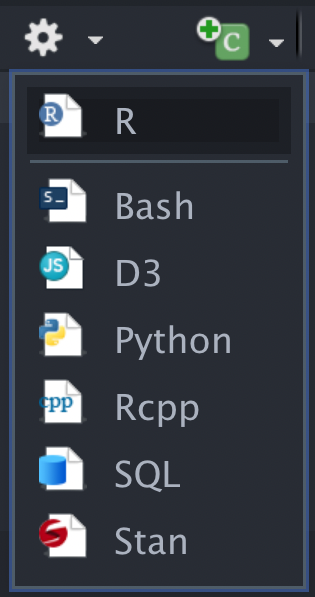

Screenshot of the Insert code chunk menu in RStudio

  • Insert specific languages (ie R, Bash, D3, Python, Rcpp, SQL, Stan)
56 / 95

Anatomy of a RMarkdown in RStudio

Screenshot of the Insert code chunk menu in RStudio

  • Insert specific languages (ie R, Bash, D3, Python, Rcpp, SQL, Stan)

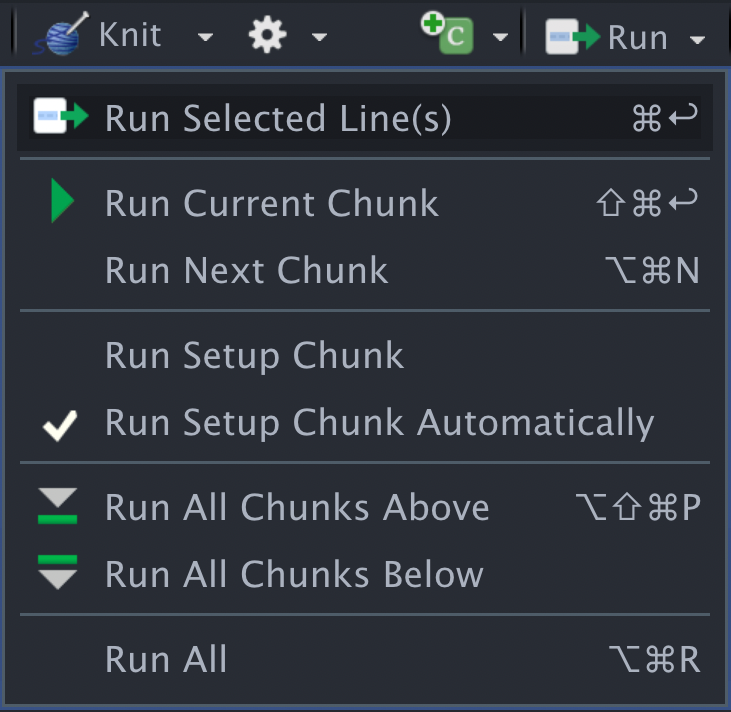

Screenshot of the Run Rmarkdown menu in RStudio

  • Run highlighted Line(s)
  • Run Current or Next Chunk
  • Select whether named Setup chunk should be run or automatically run
  • Run all Chunks
56 / 95

Anatomy of a RMarkdown in RStudio

Screenshot of the Publish, outline and Visual Editor modes in RStudio

  • Publish the document to RStudio Connect or RPubs.com
  • Open/Close the Document Outline
  • Toggle the Visual Editor mode
57 / 95

Take-aways

  • ✔️ Document your document: use YAML to set up meaningful metadata
  • ✔️ Style your document: use YAML to add options to your chosen output format
  • ✔️ Organize your text: use markdown headers with #
  • ✔️ Organize your code: use knitr chunk labels
  • ✔️ Style your text: use markdown bold, italics, - bullets, and 1. lists
  • ✔️ Style your output: use knitr chunk options

🧶 early, 🧶 often

58 / 95

Graphics

59 / 95

Some data

mockdata_all <- read_csv(here::here("data/mockdata.csv")) %>%
mutate_at(vars(starts_with("ae_")), ~as.factor(.)) %>%
mutate(fu_fct = fct_recode(as.factor(fu_stat),
"Lived" = "1",
"Died" = "2"))
## Rows: 1499 Columns: 25
## ── Column specification ────────────────────────────────────────────────────────
## Delimiter: ","
## chr (10): arm, sex, race, age_ord, site, country, ethnicity, name, first_nam...
## dbl (15): case, age, fu_time, fu_stat, ps, hgb, bmi, alk_phos, ast, mdqualit...
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
mockdata <- mockdata_all %>%
filter(!site == "Nur-Sultan")
61 / 95

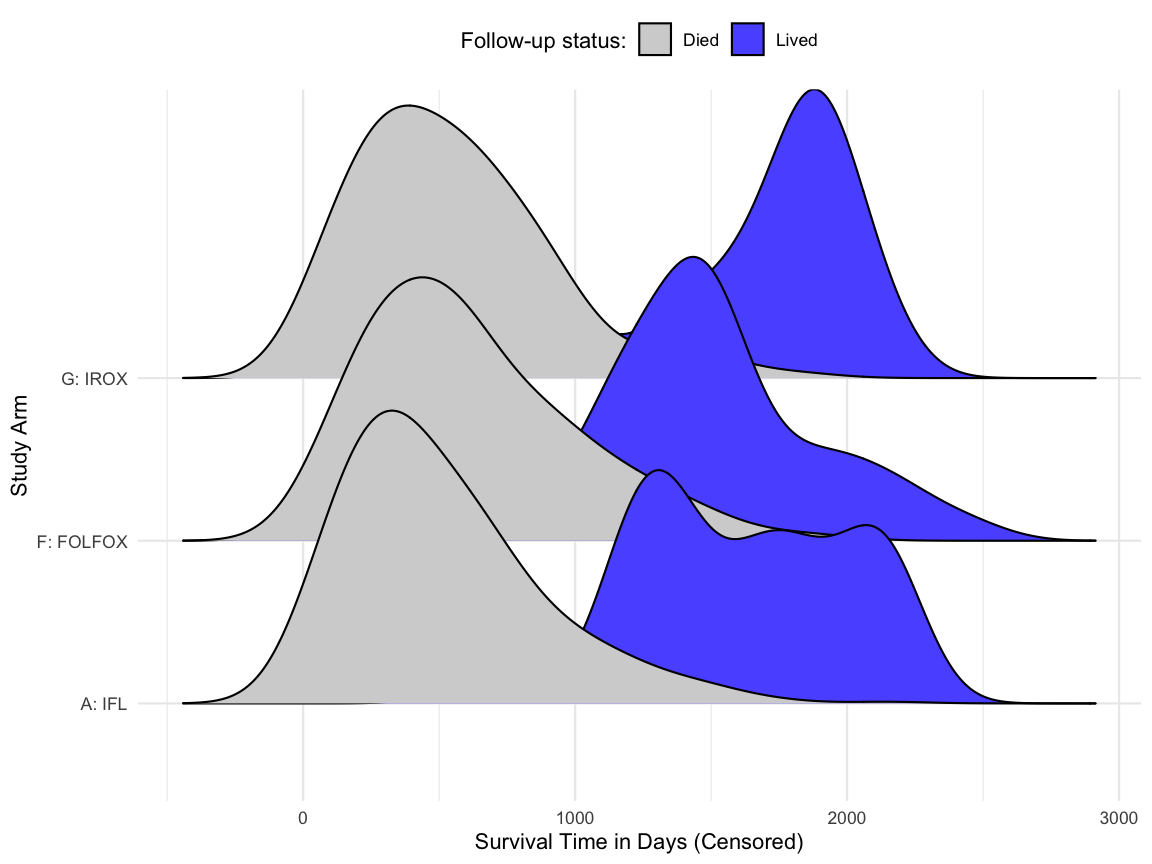

Generate plots

surv_days_plot <- ggplot(mockdata) +
aes(x = fu_time, y=arm, fill = fu_fct,
group = interaction(arm, fu_fct)) +
ggridges::geom_density_ridges() +
labs(x= "Survival Time in Days (Censored)",
y= "Study Arm") +
scale_fill_manual(
values = c("lightgrey", "#5C5CFF"),
breaks = c("Died", "Lived"),
name = "Follow-up status:") +
theme_minimal() +
theme(legend.position = "top")
surv_days_plot
62 / 95

Generate plots

surv_days_plot <- ggplot(mockdata) +
aes(x = fu_time, y=arm, fill = fu_fct,
group = interaction(arm, fu_fct)) +
ggridges::geom_density_ridges() +
labs(x= "Survival Time in Days (Censored)",
y= "Study Arm") +
scale_fill_manual(
values = c("lightgrey", "#5C5CFF"),
breaks = c("Died", "Lived"),
name = "Follow-up status:") +
theme_minimal() +
theme(legend.position = "top")
surv_days_plot

One plot, served many ways

## Picking joint bandwidth of 147

62 / 95

Control plots

  • figure resolution

    • "quality" of the plot
    • defaults to 72/96 depending on format
    • DPI increases can improve the "quality", but also increase file size
  • figure size

    • The height, width
    • Controllable in several ways
  • figure captions and alt text

    • Captions are printed captions for the document
    • Alt text are embedded, used by screen readers for visually impaired
63 / 95

Control plots

  • figure resolution

    • "quality" of the plot
    • defaults to 72/96 depending on format
    • DPI increases can improve the "quality", but also increase file size
  • figure size

    • The height, width
    • Controllable in several ways
  • figure captions and alt text

    • Captions are printed captions for the document
    • Alt text are embedded, used by screen readers for visually impaired
63 / 95

Figure resolution

{r, dpi = 72, fig.width = 5}

## Picking joint bandwidth of 147

64 / 95

Figure resolution

{r, dpi = 72, fig.width = 5}

## Picking joint bandwidth of 147

{r, dpi = 300, fig.width = 5}

## Picking joint bandwidth of 147

64 / 95

Figure resolution

{r, dpi = 72, fig.width = 4}

## Picking joint bandwidth of 147

65 / 95

Figure resolution

{r, dpi = 72, fig.width = 4}

## Picking joint bandwidth of 147

{r, fig.retina=3, fig.width=4}

## Picking joint bandwidth of 147

65 / 95

Figure size

{r, fig.retina=2, fig.dim = c(5,3)}

## Picking joint bandwidth of 147

66 / 95

Figure size

{r, fig.retina=2, fig.dim = c(5,3)}

## Picking joint bandwidth of 147

{r, fig.retina=2, fig.width=4}

## Picking joint bandwidth of 147

66 / 95

Figure size

{r, fig.retina=2, fig.dim=c(4,6)}

## Picking joint bandwidth of 147

67 / 95

Figure size

{r, fig.retina=2, fig.dim=c(8,6)}

## Picking joint bandwidth of 147

68 / 95

Arrange plots

The goal of patchwork is to make it ridiculously simple to combine separate ggplots.

library(patchwork)
p1 <- ggplot(mtcars) + geom_point(aes(mpg, disp))
p2 <- ggplot(mtcars) + geom_boxplot(aes(gear, disp, group = gear))
p1 + p2

69 / 95

One plot, two plot

age_histogram <-
ggplot(mockdata, aes(age)) +
geom_histogram(color = 'white',
fill = "#5C5CFF", bins = 20) +
labs(x = "Age", y = "Count") +
scale_y_continuous(
breaks = scales::pretty_breaks()) +
theme_minimal() +
geom_hline(yintercept = 0)
70 / 95

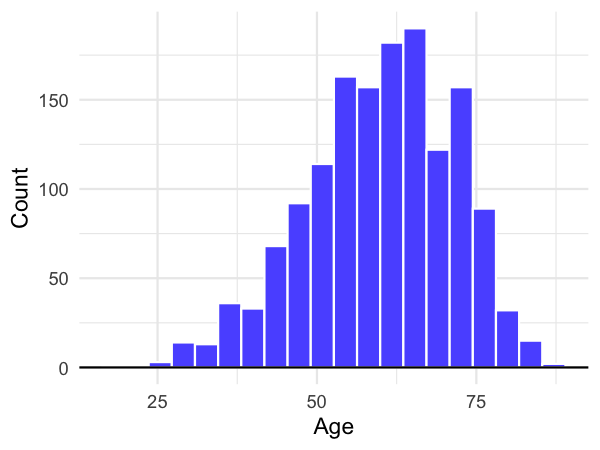

One plot, two plot

age_histogram <-
ggplot(mockdata, aes(age)) +
geom_histogram(color = 'white',
fill = "#5C5CFF", bins = 20) +
labs(x = "Age", y = "Count") +
scale_y_continuous(
breaks = scales::pretty_breaks()) +
theme_minimal() +
geom_hline(yintercept = 0)
age_histogram

70 / 95

One plot, two plot

# using fig.dim=c(8,4), fig.retina=2
surv_days_plot + age_histogram
## Picking joint bandwidth of 147

71 / 95

Labeled subplots

# using fig.dim=c(8,4), fig.retina=1
surv_days_plot + age_histogram +
plot_annotation(tag_levels = "A") # can set the tagging
## Picking joint bandwidth of 147

72 / 95

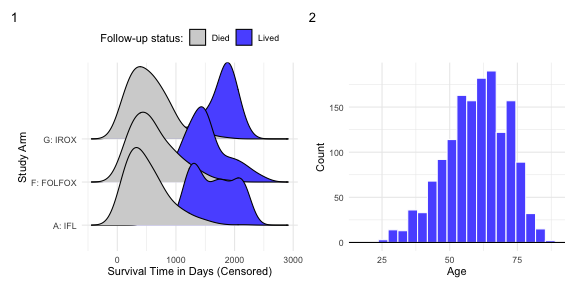

Labeled subplots

# using fig.dim=c(8,4), fig.retina=1
surv_days_plot + age_histogram +
plot_annotation(tag_levels = "1") # can alter the tagging
## Picking joint bandwidth of 147

73 / 95

Saving plots

fig.path - an alternative to calling ggsave() over and over!

74 / 95

Saving plots

fig.path - an alternative to calling ggsave() over and over!

74 / 95

A global setup chunk

```{r setup, include = FALSE}
knitr::opts_chunk$set(
warning = FALSE,
message = FALSE,
echo = FALSE,
fig.retina = 2,
fig.width = 6,
fig.path = here::here("tom-figs/")
)
```
75 / 95

A global setup chunk

```{r setup, include = FALSE}
knitr::opts_chunk$set(
warning = FALSE,
message = FALSE,
echo = FALSE,
fig.retina = 2,
fig.width = 6,
fig.path = here::here("tom-figs/")
)
```
  • No messages/warnings in my final report
  • No code returning, unless I explicitly override
  • High quality figures of a decent width
  • Save my figures out to a specific directory
75 / 95

A global setup chunk

```{r setup, include = FALSE}
knitr::opts_chunk$set(
warning = FALSE,
message = FALSE,
echo = FALSE,
fig.retina = 2,
fig.width = 6,
fig.path = here::here("tom-figs/")
)
```
  • No messages/warnings in my final report
  • No code returning, unless I explicitly override
  • High quality figures of a decent width
  • Save my figures out to a specific directory

You should experiment with your "defaults" so that you have to minimally change the individual chunks.

75 / 95

Tables

76 / 95

Tables

Given the duration of this workshop, a deep dive on tables is out of scope. In short, depending on the output (HTML, PDF, Office) you'll likely lean on specific packages. You can always output tables as an image (ie .png) and embed like you would a plot, but note that you lose the accessible benefit of a table in that case.

77 / 95

Tables

Given the duration of this workshop, a deep dive on tables is out of scope. In short, depending on the output (HTML, PDF, Office) you'll likely lean on specific packages. You can always output tables as an image (ie .png) and embed like you would a plot, but note that you lose the accessible benefit of a table in that case.

Great R packages for tables:

  • gt: Aiming to be a grammar of tables, as ggplot2 is an implemementation of the grammar of graphics.
  • gtsummary: a great package for quickly summarizing data or common statistical outputs.
  • flextable: flexible package for output, especially powerful in that it can output tables to Word/Powerpoint.
  • gtExtras: my own package, primarily for embedding many data visualizations into gt tables.
  • kableExtra: very stable and easy to use package for quickly creating tables in HTML/LaTeX (ie PDF).
  • bstfun: A miscellaneous collection of functions to used by members of the Biostatistics Department at MSKCC
77 / 95

gtsummary

I am a huge fan of gtsummary and gt. gtsummary is especially powerful as it combines common tasks with rich support for outputs (Word, PDF, HTML). It is a wrapper around several packages with many additional capabilities built in.

78 / 95

gtsummary

I am a huge fan of gtsummary and gt. gtsummary is especially powerful as it combines common tasks with rich support for outputs (Word, PDF, HTML). It is a wrapper around several packages with many additional capabilities built in.

library(gtsummary)
library(tidyverse)
library(survival)
78 / 95

Examples

select(trial, trt, age, grade, response) %>%
tbl_summary(by = trt)
79 / 95

Examples

select(trial, trt, age, grade, response) %>%
tbl_summary(by = trt)
Characteristic Drug A, N = 981 Drug B, N = 1021
Age 46 (37, 59) 48 (39, 56)
Unknown 7 4
Grade
I 35 (36%) 33 (32%)
II 32 (33%) 36 (35%)
III 31 (32%) 33 (32%)
Tumor Response 28 (29%) 33 (34%)
Unknown 3 4
1 Median (IQR); n (%)
79 / 95

bstfun adds some fun!

My own package gtExtras can be used natively with gt, and Daniel has wrapped it to be supported in gtsummary!

library(gtsummary)
select(trial, age, marker) %>%
tbl_summary(missing = "no") %>%
bstfun::add_sparkline() # brought in from gtExtras
Characteristic N = 2001 Histogram
Age 47 (38, 57)
Marker Level (ng/mL) 0.64 (0.22, 1.39)
1 Median (IQR)
80 / 95

Examples

t1 <-
glm(response ~ trt + grade + age, trial, family = binomial) %>%
tbl_regression(exponentiate = TRUE)
# time to death Cox model
t2 <-
coxph(Surv(ttdeath, death) ~ trt + grade + age, trial) %>%
tbl_regression(exponentiate = TRUE)
# printing merged table
combo_tab <- tbl_merge(
tbls = list(t1, t2),
tab_spanner = c("**Tumor Response**", "**Time to Death**")
)

-

Characteristic Tumor Response Time to Death
OR1 95% CI1 p-value HR1 95% CI1 p-value
Chemotherapy Treatment
Drug A
Drug B 1.13 0.60, 2.13 0.7 1.30 0.88, 1.92 0.2
Grade
I
II 0.85 0.39, 1.85 0.7 1.21 0.73, 1.99 0.5
III 1.01 0.47, 2.15 >0.9 1.79 1.12, 2.86 0.014
Age 1.02 1.00, 1.04 0.10 1.01 0.99, 1.02 0.3
1 OR = Odds Ratio, CI = Confidence Interval, HR = Hazard Ratio
-
81 / 95
82 / 95

Meta RMarkdown

83 / 95

Using RMarkdown parameters

---
title: Visualizing the Ocean Floor
output: html_document
params:
state: "hawaii"
---
84 / 95

Using RMarkdown parameters

---
title: Visualizing the Ocean Floor
output: html_document
params:
state: "hawaii"
---

You can reference parameters inline, ie r params$data which returns "hawaii" as the result.

Or, can be used in normal chunks:

ocean_data %>%
filter(state == params$state) %>%
autoplot()
84 / 95

Using RMarkdown parameters

---
title: My Document
output: html_document
params:
days:
label: "Number of Previous Days"
value: 90
input: slider
min: 30
max: 360
region:
label: "Region:"
value: Europe
input: select
choices: [North America, Europe, Asia, Africa]
---
85 / 95

Using RMarkdown parameters

---
title: My Document
output: html_document
params:
days:
label: "Number of Previous Days"
value: 90
input: slider
min: 30
max: 360
region:
label: "Region:"
value: Europe
input: select
choices: [North America, Europe, Asia, Africa]
---

Can also create shiny "modals" inside RStudio, via knit with parameters

85 / 95

More details on parameters and workflow

86 / 95

Formats

87 / 95

Many RMarkdown Formats

Documents
Notebook Interactive R Notebooks
HTML HTML document w/ Bootstrap CSS
PDF PDF document (via LaTeX template)
Word Microsoft Word document (docx)
ODT OpenDocument Text document
RTF Rich Text Format document
Markdown Markdown document (various flavors)
Presentations
ioslides HTML presentation with ioslides
reveal.js HTML presentation with reveal.js
Slidy HTML presentation with W3C Slidy
Beamer PDF presentation with LaTeX Beamer
PowerPoint PowerPoint presentation
88 / 95

Many RMarkdown Formats

Documents
Notebook Interactive R Notebooks
HTML HTML document w/ Bootstrap CSS
PDF PDF document (via LaTeX template)
Word Microsoft Word document (docx)
ODT OpenDocument Text document
RTF Rich Text Format document
Markdown Markdown document (various flavors)
Presentations
ioslides HTML presentation with ioslides
reveal.js HTML presentation with reveal.js
Slidy HTML presentation with W3C Slidy
Beamer PDF presentation with LaTeX Beamer
PowerPoint PowerPoint presentation
Journals
distill Scientific and technical writing for the web
jss_article Journal of Statistical Software (JSS)
acm_article Association for Computing Machinery (ACM)
acs_article American Chemical Society (ACS) Journal
ctex Documents based on the LaTeX package ctex
elsevier_article Submissions to Elsevier journals
More
flexdashboard Interactive dashboards
bookdown HTML, PDF, ePub, and Kindle books
Websites Multi-page websites
blogdown Customizable websites and blogs
pkgdown Package documentation websites
Tufte Handout Handouts in the style of Edward Tufte
Package Vignette R package vignette (HTML)
Github Document GitHub Flavored Markdown document.
88 / 95

Remember, it's all just code!

The different outputs are used for their specific purposes, but remember that the way of writing, adding code, etc is shared across them all!

89 / 95

Remember, it's all just code!

The different outputs are used for their specific purposes, but remember that the way of writing, adding code, etc is shared across them all!

Learn RMarkdown and R, and you can use your code to generate:

  • Plots
  • Tables
  • Text
  • Reports
  • Presentations
  • Websites
  • Books
  • Whatever you can think of!
89 / 95

html_document

The "workhorse" of RMarkdown, this is the default format. Amazing amount of power in HTML and has the richest feature set.

RMarkdown - html_document

90 / 95

html_document

The "workhorse" of RMarkdown, this is the default format. Amazing amount of power in HTML and has the richest feature set.

RMarkdown - html_document

pdf_document

Useful when you prefer LaTeX instead of HTML, or if you need PDF as an output.

RMarkdown - pdf_document

90 / 95

Office compliance

The Office standards, but created programatically with R and RMarkdown!

91 / 95

Office compliance

The Office standards, but created programatically with R and RMarkdown!

word_document

RMarkdown word_document

powerpoint

RMarkdown powerpoint

91 / 95

xaringan

Exceptionally powerful/beautiful presentations created with RMarkdown.

RMarkdown xaringan

92 / 95

distill

My personal favorite format, scientific writing native to the web!

Distill for R Markdown is a web publishing format optimized for scientific and technical communication. Distill articles include:

  • Reader-friendly typography that adapts well to mobile devices.
  • Features essential to technical writing like LaTeX math, citations, and footnotes.
  • Flexible figure layout options (e.g. displaying figures at a larger width than the article text).
  • Attractively rendered tables with optional support for pagination.
  • Support for a wide variety of diagramming tools for illustrating concepts.
  • The ability to incorporate JavaScript and D3-based interactive visualizations.
  • A variety of ways to publish articles, including support for publishing sets of articles as a Distill website or as a Distill blog.

Distill for RMarkdown

93 / 95

bookdown

Write entire books in RMarkdown! The RMarkdown book itself was written this way.

RMarkdown bookdown

94 / 95

Resources

Workshop materials: on Github

Slides: jthomasmock.github.io/rmd-nhs/

Some content adapted from superstar Dr. Alison Hill CDC & R4Pharma: CC-BY

2 / 95
Paused

Help

Keyboard shortcuts

, , Pg Up, k Go to previous slide
, , Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
Number + Return Go to specific slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
