Bigger data

# Bigger data

## with `arrow` and `duckdb`

### Tom Mock & Edgar Ruiz

### 2021-10-27

<br>

<span style='color:white;'>Slides released under</span> [CC-BY 2.0](https://creativecommons.org/licenses/by/2.0/)&nbsp;&nbsp;<svg aria-hidden="true" role="img" viewBox="0 0 496 512" style="height:1em;width:0.97em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:white;overflow:visible;position:relative;"><path d="M245.83 214.87l-33.22 17.28c-9.43-19.58-25.24-19.93-27.46-19.93-22.13 0-33.22 14.61-33.22 43.84 0 23.57 9.21 43.84 33.22 43.84 14.47 0 24.65-7.09 30.57-21.26l30.55 15.5c-6.17 11.51-25.69 38.98-65.1 38.98-22.6 0-73.96-10.32-73.96-77.05 0-58.69 43-77.06 72.63-77.06 30.72-.01 52.7 11.95 65.99 35.86zm143.05 0l-32.78 17.28c-9.5-19.77-25.72-19.93-27.9-19.93-22.14 0-33.22 14.61-33.22 43.84 0 23.55 9.23 43.84 33.22 43.84 14.45 0 24.65-7.09 30.54-21.26l31 15.5c-2.1 3.75-21.39 38.98-65.09 38.98-22.69 0-73.96-9.87-73.96-77.05 0-58.67 42.97-77.06 72.63-77.06 30.71-.01 52.58 11.95 65.56 35.86zM247.56 8.05C104.74 8.05 0 123.11 0 256.05c0 138.49 113.6 248 247.56 248 129.93 0 248.44-100.87 248.44-248 0-137.87-106.62-248-248.44-248zm.87 450.81c-112.54 0-203.7-93.04-203.7-202.81 0-105.42 85.43-203.27 203.72-203.27 112.53 0 202.82 89.46 202.82 203.26-.01 121.69-99.68 202.82-202.84 202.82z"/></svg><svg aria-hidden="true" role="img" viewBox="0 0 496 512" style="height:1em;width:0.97em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:white;overflow:visible;position:relative;"><path d="M314.9 194.4v101.4h-28.3v120.5h-77.1V295.9h-28.3V194.4c0-4.4 1.6-8.2 4.6-11.3 3.1-3.1 6.9-4.7 11.3-4.7H299c4.1 0 7.8 1.6 11.1 4.7 3.1 3.2 4.8 6.9 4.8 11.3zm-101.5-63.7c0-23.3 11.5-35 34.5-35s34.5 11.7 34.5 35c0 23-11.5 34.5-34.5 34.5s-34.5-11.5-34.5-34.5zM247.6 8C389.4 8 496 118.1 496 256c0 147.1-118.5 248-248.4 248C113.6 504 0 394.5 0 256 0 123.1 104.7 8 247.6 8zm.8 44.7C130.2 52.7 44.7 150.6 44.7 256c0 109.8 91.2 202.8 203.7 202.8 103.2 0 202.8-81.1 202.8-202.8.1-113.8-90.2-203.3-202.8-203.3z"/></svg> ]

---

<div class="my-footer"><span>https://colorado.rstudio.com/rsc/bigger-data-prez/</span></div>

---

### The initial ask

> * Some discussion around in-process analytics
> * The concept and implementations like DuckDb and Arrow
> * What the current landscape of options looks like, what is and isn't stable enough for enterprise use
> * DuckDB backend for dplyr

* [Hannes Mühleisen & Mark Raasveldt slides, 2021](https://homepages.cwi.nl/~hannes/sigmod2021-muehleisen-inprocess-slides.pdf)
* [New directions for Apache Arrow, Wes McKinney 2021-09-13](https://www.slideshare.net/wesm/new-directions-for-apache-arrow)

---

### The TLDR;

#### `arrow`

> `arrow` is software development platform for building high performance applications that process and transport large data sets

* The `arrow` R package is an interface to data via the `arrow` backend, and has upcoming enhanced support for `dplyr`:
  - Existing ungrouped `mutate()`, `filter()`, `select()` in `arrow` 5.0
  - `group_by()` + `summarize()` aggregation coming in 6.0
* `arrow` data can be "handed off" to `duckdb` with `to_duckdb()` for any `dbplyr` commands without data conversion. IE no serialization or data copying costs are incurred.

---

### The TLDR;

#### `duckdb`

> DuckDB is a lightweight, columnar oriented, on disk database designed to support **analytical query workloads** and has no external dependencies. It's the '`sqlite` for analytics'

* The `duckdb` R package is an interface to `duckdb` from R
* It uses postgres 'flavored' SQL with rich support for `dbplyr`
* It is up to 10x faster than `sqlite` with the same lightweight structure (just a header and the implementation file)
* It can work with existing on-disk data or interact with `arrow` without any transfer costs

---

### Working with bigger data?

* Relational databases (IE SQL) are still around and hugely popular but...

* Data and specifically _Local_ files are getting bigger

* Data Warehouses/Data Lakes often use flat-file storage (`.csv`, `.parquet`, `.json` etc)

If the team has a Data Lake (ie semi-structured raw data in CSV, Parquet, JSON, etc) _and_ access to a Data Lake query engine (like Dremio, Athena, Presto, Snowflake, etc), then they should use those tools in R via ODBC

BUT for teams that don't, or have extracts that are still large. How do you work with data that isn't already in a database, and is bigger than your memory?

---

### Pause for one second

If it _can_ fit in memory, then try out:

* [`vroom::vroom()`](https://vroom.r-lib.org/) or [`data.table::fread()`](https://rdatatable.gitlab.io/data.table/reference/fread.html) for fast file reads _into_ R
  * [`vroom(col_select = c(column_name))`](https://vroom.r-lib.org/reference/vroom.html) also allows for partial reads (ie specific columns)

* [`data.table`](https://rdatatable.gitlab.io/data.table/index.html) or the `dplyr` front-end to `data.table` via [`dtplyr`](https://dtplyr.tidyverse.org/) for fast and efficient in-memory analysis

* Lastly, the [`collapse`](https://sebkrantz.github.io/collapse/) R package for limited capability, but hyper-performant data manipulation

---

### Two topics for today

Two relatively lightweight options:

* The [Apache Arrow](https://arrow.apache.org/) project

* [`duckdb`](https://duckdb.org/docs/api/r)

* Also, `arrow` can be used to expedite data transfer via  [`sparklyr`](https://spark.rstudio.com/guides/arrow/) to great effect, but that brings into play Java, Scala, and `rJava` 🙃

---

## `duckdb`, like sqlite<br>but _really_ fast

---

### [`duckdb`](https://duckdb.org/docs/why_duckdb.html)

> DuckDB plays well with `dbplyr` / `dplyr` for querying from R. - [duckdb.org/docs/api/r](https://duckdb.org/docs/api/r)

#### Fast

> DuckDB is designed to support analytical query workloads, also known as Online analytical processing (OLAP). These workloads are characterized by complex, relatively long-running queries that process significant portions of the stored dataset, for example aggregations over entire tables.

#### Simple

> DuckDB has no external dependencies, neither for compilation nor during run-time [basically a 10x faster version of SQLite]

#### Feature Rich

> Data can be stored in persistent, single-file databases. DuckDB is deeply integrated into Python and R for efficient interactive data analysis. Use[s] the PostgreSQL parser

---

### <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#338333;overflow:visible;position:relative;"><path d="M504 256c0 136.967-111.033 248-248 248S8 392.967 8 256 119.033 8 256 8s248 111.033 248 248zM227.314 387.314l184-184c6.248-6.248 6.248-16.379 0-22.627l-22.627-22.627c-6.248-6.249-16.379-6.249-22.628 0L216 308.118l-70.059-70.059c-6.248-6.248-16.379-6.248-22.628 0l-22.627 22.627c-6.248 6.248-6.248 16.379 0 22.627l104 104c6.249 6.249 16.379 6.249 22.628.001z"/></svg> When to use DuckDB

* Processing and storing tabular datasets, e.g. from CSV or Parquet files
* **Interactive data analysis**, e.g. Joining & aggregate multiple large tables
* Concurrent large changes, to multiple large tables, e.g. appending rows, adding/removing/updating columns
* Large result set transfer to client

]

### <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:red;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm121.6 313.1c4.7 4.7 4.7 12.3 0 17L338 377.6c-4.7 4.7-12.3 4.7-17 0L256 312l-65.1 65.6c-4.7 4.7-12.3 4.7-17 0L134.4 338c-4.7-4.7-4.7-12.3 0-17l65.6-65-65.6-65.1c-4.7-4.7-4.7-12.3 0-17l39.6-39.6c4.7-4.7 12.3-4.7 17 0l65 65.7 65.1-65.6c4.7-4.7 12.3-4.7 17 0l39.6 39.6c4.7 4.7 4.7 12.3 0 17L312 256l65.6 65.1z"/></svg> When to not use DuckDB

* Non-rectangular data sets, e.g. graphs, plaintext
* High-volume transactional use cases (e.g. tracking orders in a webshop)
* Large client/server installations for centralized enterprise data warehousing
* Writing to a single database from multiple concurrent processes

]

Credit: [duckdb.org/](https://duckdb.org/)

---

### `duckdb` + `dbplyr`

`duckdb` uses Postgres-flavored SQL, so it has deep integration with `dbplyr` out of the box.

```r
library("dplyr", warn.conflicts = FALSE)

con <- DBI::dbConnect(duckdb::duckdb()) # create a temp database in memory
duckdb::duckdb_register(con, "flights", nycflights13::flights)
tbl(con, "flights")
```

```
## # Source:   table<flights> [?? x 19]
## # Database: duckdb_connection
##     year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
##    <int> <int> <int>    <int>          <int>     <dbl>    <int>          <int>
##  1  2013     1     1      517            515         2      830            819
##  2  2013     1     1      533            529         4      850            830
##  3  2013     1     1      542            540         2      923            850
##  4  2013     1     1      544            545        -1     1004           1022
##  5  2013     1     1      554            600        -6      812            837
##  6  2013     1     1      554            558        -4      740            728
##  7  2013     1     1      555            600        -5      913            854
##  8  2013     1     1      557            600        -3      709            723
##  9  2013     1     1      557            600        -3      838            846
## 10  2013     1     1      558            600        -2      753            745
## # … with more rows, and 11 more variables: arr_delay <dbl>, carrier <chr>,
## #   flight <int>, tailnum <chr>, origin <chr>, dest <chr>, air_time <dbl>,
## #   distance <dbl>, hour <dbl>, minute <dbl>, time_hour <dttm>
```

---

### `duckdb` + `dbplyr`

`duckdb` uses Postgres-flavored SQL, so it has deep integration with `dbplyr` out of the box.

```r
tbl(con, "flights") %>%
  group_by(dest) %>%
  summarise(delay = mean(dep_time, na.rm = TRUE))
```

```
## # Source:   lazy query [?? x 2]
## # Database: duckdb_connection
##    dest  delay
##    <chr> <dbl>
##  1 IAH   1266.
##  2 MIA   1245.
##  3 BQN   1375.
##  4 ATL   1293.
##  5 ORD   1310.
##  6 FLL   1327.
##  7 IAD   1306.
##  8 MCO   1337.
##  9 PBI   1335.
## 10 TPA   1346.
## # … with more rows
```

### How big is `nycflights13` anyway?

```r
lobstr::obj_size(nycflights13::flights) %>%
  unclass() %>%
  scales::label_bytes()(.)
```

```
## [1] "41 MB"
```

### Save to disk as a `.csv`

```r
nycflights13::flights %>%
  janitor::clean_names() %>%
  write_delim("flights.csv", delim = ",")
```

```r
fs::file_info("flights.csv") %>% pull(size)
```

```
## 29.6M
```

---

### Load into `duckdb` permanently

```r
# write to disk as "flightDisk", other defaults to in memory
con <- DBI::dbConnect(duckdb::duckdb(), "flightDisk")

duckdb::duckdb_read_csv(conn = con, name = "flightsCSV",  files = "flights.csv",
                        header = TRUE, delim = ",", na.strings = "NA")
```

```r
DBI::dbListTables(con)
```

```
## [1] "flightsCSV"
```

---

### Flying with the `duckdb`s

```r
flight_tbl <- tbl(con, "flightsCSV")
```

---

### Flying with the `duckdb`s

```r
flight_tbl <- tbl(con, "flightsCSV")
flight_tbl
```

```
## # Source:   table<flightsCSV> [?? x 19]
## # Database: duckdb_connection
##     year month   day dep_time sched_dep_time dep_delay arr_time sched_arr_time
##    <int> <int> <int>    <int>          <int>     <int>    <int>          <int>
##  1  2013     1     1      517            515         2      830            819
##  2  2013     1     1      533            529         4      850            830
##  3  2013     1     1      542            540         2      923            850
##  4  2013     1     1      544            545        -1     1004           1022
##  5  2013     1     1      554            600        -6      812            837
##  6  2013     1     1      554            558        -4      740            728
##  7  2013     1     1      555            600        -5      913            854
##  8  2013     1     1      557            600        -3      709            723
##  9  2013     1     1      557            600        -3      838            846
## 10  2013     1     1      558            600        -2      753            745
## # … with more rows, and 11 more variables: arr_delay <int>, carrier <chr>,
## #   flight <int>, tailnum <chr>, origin <chr>, dest <chr>, air_time <int>,
## #   distance <int>, hour <int>, minute <int>, time_hour <chr>
```

---

### Flying with the `duckdb`s

```r
flight_tbl %>%
  group_by(month, origin) %>%
  summarise(avg_delay = mean(dep_delay, na.rm = TRUE), .groups = "drop") %>%
  arrange(desc(avg_delay)) # all on disk still
```

```
## # Source:     lazy query [?? x 3]
## # Database:   duckdb_connection
## # Ordered by: desc(avg_delay)
##    month origin avg_delay
##    <int> <chr>      <dbl>
##  1     7 JFK         23.8
##  2     6 EWR         22.5
##  3     7 EWR         22.0
##  4    12 EWR         21.0
##  5     6 JFK         20.5
##  6     6 LGA         19.3
##  7     7 LGA         19.0
##  8     3 EWR         18.1
##  9     4 EWR         17.4
## 10     5 EWR         15.4
## # … with more rows
```

---

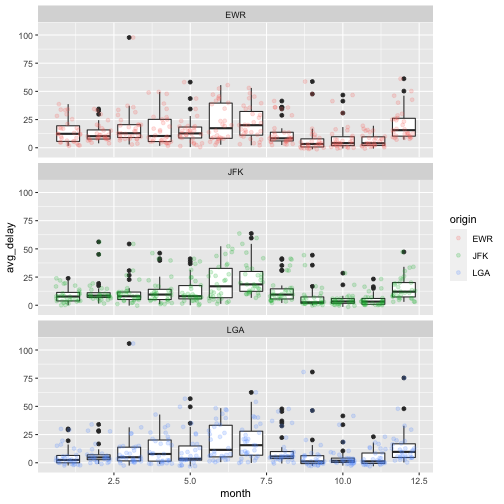

### Landing the `duckdb` in memory

```r
flight_tbl %>%
  group_by(origin, month, day) %>%
  summarise(
    avg_delay = mean(dep_delay, na.rm = T),
    .groups = "drop"
    ) %>%
  arrange(desc(avg_delay)) %>%
  # collect() to bring into R
  collect() %>%
  # and then it's like any other dataframe!
  ggplot(aes(x = month, y = avg_delay)) +
  geom_boxplot(aes(group = month)) +
  geom_jitter(
    aes(color = origin),
    alpha = 0.2, width = 0.4) +
  facet_wrap(~origin, ncol = 1)
```

]

![](index_files/figure-html/duckdbPlot-1.png)

]

---

# `Apache`<br>`arrow`

---

### `arrow`

> [Apache Arrow](https://arrow.apache.org/) is a cross-language development platform for in-memory data. It specifies a standardized language-independent columnar memory format for flat and hierarchical data, organized for efficient analytic operations on modern hardware. It also provides computational libraries and zero-copy streaming messaging and interprocess communication.

> The `arrow` package exposes an interface to the Arrow C++ library, enabling access to many of its features in R. It provides low-level access to the Arrow C++ library API and higher-level access through a `dplyr` backend and familiar R functions.

For more info, checkout the slides from Wes McKinney as of [September 10th](https://www.slideshare.net/wesm/new-directions-for-apache-arrow)

---

### `arrow` and `duckdb` integration

```r
arrow::InMemoryDataset$create(mtcars) %>%
  filter(mpg < 30) %>%
  arrow::to_duckdb() %>% # oneliner to move into duckdb
  group_by(cyl) %>%
  summarize(mean_mpg = mean(mpg, na.rm = TRUE))
```

```
## # Source:   lazy query [?? x 2]
## # Database: duckdb_connection
##     cyl mean_mpg
##   <dbl>    <dbl>
## 1     6     19.7
## 2     4     23.7
## 3     8     15.1
```

---

### Big data

ok... so `mtcars` is most definitely not big data.

And ~30 Mb of `nycflights.csv` is not that impressive.

Let's use the `arrow` example data, stay in NYC, and look at the `nyc-taxi` fare dataset

```r
nyc_fares <- fs::dir_info("nyc-taxi", recurse = TRUE) %>%
  filter(type == "file") %>%
  summarise(n = n(), size = sum(size))

glue::glue("There are {nyc_fares$n} files, totaling {nyc_fares$size}!")
```

```
## There are 125 files, totaling 37G!
```

Now that we have a full quiver of data to pull from, let's shoot some `arrow`s

Also RIP my laptop's hard drive space 💣 💥 💣

---

### Shoot some `arrow`s

Benchmarked with R 4.1.1 on a Macbook Pro 2017 (2.3 GHz Dual-Core Intel Core i5) with 16 GB 2133 MHz LPDDR3 and 256 GB SSD

```r
library(duckdb)
library(pins)
library(arrow, warn.conflicts = FALSE)
library(dplyr, warn.conflicts = FALSE)
library(tictoc) # for timing

# arrow::arrow_with_s3()
# setwd("/Volumes/mock-external/")
# arrow::copy_files("s3://ursa-labs-taxi-data", "nyc-taxi")
# warning that downloads 37Gb of data!

tic()
ds <- open_dataset("nyc-taxi", partitioning = c("year", "month"))
toc() # just to show that this is a fast process
```

```
## 0.062 sec elapsed
```

---

### How many ar**rows**?

```r
tic()
full_collect <- summarise(ds, n = n()) %>%
  collect() %>%
  pull(n)
n_rows <- scales::unit_format(unit = "billion", scale = 1e-9,
                      accuracy = 0.01)(full_collect)
glue::glue("There are approximately {n_rows} rows!")
```

```
## There are approximately 1.55 billion rows!
```

```r
toc() # wow that's fast.
```

```
## 1.213 sec elapsed
```

---

# Ludicrous speed!

---

### How can you query 1.5 BILLION rows in a few seconds?

> Apache Arrow processes large amounts of data quickly by using Single Instruction Multiple Data (SIMD). Sets of data are broken into batches that fit the cache layers of a CPU. - [Apache Arrow overview from OmniSci](https://www.omnisci.com/technical-glossary/apache-arrow)

`arrow` provides an R interface to `feather` and `parquet`, along with more traditional formats (CSV, JSON, RDS). It also provides a translation of `dplyr` into `dbplyr`-style queries OUT of memory.

`arrow` is a columnar data format, as opposed to more traditional storage that is row-based.

With row-based, when `filter()` or `select()`, the query engine would have to scan every row, parse each column, extract the specified matches and then perform calculations

With columnar formats, you can completely skip unnecessary columns, and even for a relatively "narrow" dataset of 6x columns, this means 1/6th the processing... or essentially a 600% performance gain. You can imagine the performance gains when you have wide data with dozens of additional columns that are only needed intermittently.

---

### How can you query 1.5 BILLION rows in a few seconds?

---

### How can you query ~~1.5 BILLION rows~~ in a few seconds?

The answer? By **not** reading in 1.5 billion rows.

`arrow`'s 'magic', is that `filter()` + `select()` + columnar data format are "cheat codes" for ludicrously fast subset queries. BUT it's also very optimized, and simply reading in entire files or entire columns is also very fast. [Neal Richardson, NYR 2020](https://enpiar.com/talks/nyr-2020/#41)

---

### One more piece of "magic"

`arrow` and `arrow::open_dataset()` allows for the creation and reading of partitioned datasets. The `nyc-taxi` data is _actually_ 126 individual parquet files. Each file is about 300 Mb.

This allows for "touching" only the necessary subsets, rather than searching the entire combined dataset.

```r
ds <- open_dataset("nyc-taxi", partitioning = c("year", "month"))
```

```r
fs::dir_ls("nyc-taxi/", recurse = TRUE) %>%
  stringr::str_subset("parquet", negate = TRUE) %>%
  stringr::str_subset("\\/20[0-9]+\\/") %T>%
  {cat("There are", length(.), "files\n")} %>% return()
```

```
## There are 126 files
```

```
##   [1] "nyc-taxi/2009/01" "nyc-taxi/2009/02" "nyc-taxi/2009/03"
##   [4] "nyc-taxi/2009/04" "nyc-taxi/2009/05" "nyc-taxi/2009/06"
##   [7] "nyc-taxi/2009/07" "nyc-taxi/2009/08" "nyc-taxi/2009/09"
##  [10] "nyc-taxi/2009/10" "nyc-taxi/2009/11" "nyc-taxi/2009/12"
##  [13] "nyc-taxi/2010/01" "nyc-taxi/2010/02" "nyc-taxi/2010/03"
##  [16] "nyc-taxi/2010/04" "nyc-taxi/2010/05" "nyc-taxi/2010/06"
##  [19] "nyc-taxi/2010/07" "nyc-taxi/2010/08" "nyc-taxi/2010/09"
##  [22] "nyc-taxi/2010/10" "nyc-taxi/2010/11" "nyc-taxi/2010/12"
##  [25] "nyc-taxi/2011/01" "nyc-taxi/2011/02" "nyc-taxi/2011/03"
##  [28] "nyc-taxi/2011/04" "nyc-taxi/2011/05" "nyc-taxi/2011/06"
##  [31] "nyc-taxi/2011/07" "nyc-taxi/2011/08" "nyc-taxi/2011/09"
##  [34] "nyc-taxi/2011/10" "nyc-taxi/2011/11" "nyc-taxi/2011/12"
##  [37] "nyc-taxi/2012/01" "nyc-taxi/2012/02" "nyc-taxi/2012/03"
##  [40] "nyc-taxi/2012/04" "nyc-taxi/2012/05" "nyc-taxi/2012/06"
##  [43] "nyc-taxi/2012/07" "nyc-taxi/2012/08" "nyc-taxi/2012/09"
##  [46] "nyc-taxi/2012/10" "nyc-taxi/2012/11" "nyc-taxi/2012/12"
##  [49] "nyc-taxi/2013/01" "nyc-taxi/2013/02" "nyc-taxi/2013/03"
##  [52] "nyc-taxi/2013/04" "nyc-taxi/2013/05" "nyc-taxi/2013/06"
##  [55] "nyc-taxi/2013/07" "nyc-taxi/2013/08" "nyc-taxi/2013/09"
##  [58] "nyc-taxi/2013/10" "nyc-taxi/2013/11" "nyc-taxi/2013/12"
##  [61] "nyc-taxi/2014/01" "nyc-taxi/2014/02" "nyc-taxi/2014/03"
##  [64] "nyc-taxi/2014/04" "nyc-taxi/2014/05" "nyc-taxi/2014/06"
##  [67] "nyc-taxi/2014/07" "nyc-taxi/2014/08" "nyc-taxi/2014/09"
##  [70] "nyc-taxi/2014/10" "nyc-taxi/2014/11" "nyc-taxi/2014/12"
##  [73] "nyc-taxi/2015/01" "nyc-taxi/2015/02" "nyc-taxi/2015/03"
##  [76] "nyc-taxi/2015/04" "nyc-taxi/2015/05" "nyc-taxi/2015/06"
##  [79] "nyc-taxi/2015/07" "nyc-taxi/2015/08" "nyc-taxi/2015/09"
##  [82] "nyc-taxi/2015/10" "nyc-taxi/2015/11" "nyc-taxi/2015/12"
##  [85] "nyc-taxi/2016/01" "nyc-taxi/2016/02" "nyc-taxi/2016/03"
##  [88] "nyc-taxi/2016/04" "nyc-taxi/2016/05" "nyc-taxi/2016/06"
##  [91] "nyc-taxi/2016/07" "nyc-taxi/2016/08" "nyc-taxi/2016/09"
##  [94] "nyc-taxi/2016/10" "nyc-taxi/2016/11" "nyc-taxi/2016/12"
##  [97] "nyc-taxi/2017/01" "nyc-taxi/2017/02" "nyc-taxi/2017/03"
## [100] "nyc-taxi/2017/04" "nyc-taxi/2017/05" "nyc-taxi/2017/06"
## [103] "nyc-taxi/2017/07" "nyc-taxi/2017/08" "nyc-taxi/2017/09"
## [106] "nyc-taxi/2017/10" "nyc-taxi/2017/11" "nyc-taxi/2017/12"
## [109] "nyc-taxi/2018/01" "nyc-taxi/2018/02" "nyc-taxi/2018/03"
## [112] "nyc-taxi/2018/04" "nyc-taxi/2018/05" "nyc-taxi/2018/06"
## [115] "nyc-taxi/2018/07" "nyc-taxi/2018/08" "nyc-taxi/2018/09"
## [118] "nyc-taxi/2018/10" "nyc-taxi/2018/11" "nyc-taxi/2018/12"
## [121] "nyc-taxi/2019/01" "nyc-taxi/2019/02" "nyc-taxi/2019/03"
## [124] "nyc-taxi/2019/04" "nyc-taxi/2019/05" "nyc-taxi/2019/06"
```

---

### Big data, new data

```r
tic()
ds %>%
  filter(total_amount > 100, year == 2015) %>%
  select(tip_amount, total_amount, passenger_count) %>%
  # calculate a new column, on disk!
  mutate(tip_pct = 100 * tip_amount / total_amount) %>%
  group_by(passenger_count) %>%
  summarise(
    mean_tip_pct = mean(tip_pct),
    n = n()
  ) %>%
  collect() %>%
  print()
toc()
```

]

```
## # A tibble: 10 × 3
##    passenger_count mean_tip_pct      n
##              <int>        <dbl>  <int>
##  1               1        13.5  143087
##  2               2        12.6   34418
##  3               6        18.2    3338
##  4               3        11.9    8922
##  5               4        11.1    4771
##  6               5        16.8    5806
##  7               0         9.78    380
##  8               8        16.5      32
##  9               9        12.7      42
## 10               7        16.3      11
```

```
## 6.106 sec elapsed
```

]

---

### Big data, all the rows

OK not all the rows, but at least the rows with actual passengers (there's some negative values in `passenger_count`... 🤔)

--
.left-wide[

```r
tic()
ds %>%
  select(passenger_count, total_amount) %>%
  filter(between(passenger_count, 0, 6)) %>%
  group_by(passenger_count) %>%
  summarise(
    n = n(),
    mean_total = mean(total_amount, na.rm = TRUE)
    ) %>%
  collect() %>% # pull into memory!
  arrange(desc(passenger_count))
toc()
```

]

```
## # A tibble: 7 × 3
##   passenger_count          n mean_total
##             <int>      <int>      <dbl>
## 1               6   37241244       15.1
## 2               5   99064441       13.9
## 3               4   32443710       14.5
## 4               3   67096194       14.4
## 5               2  227454966       14.8
## 6               1 1078624900       14.1
## 7               0    5809809       13.0
```

```
## 46.32 sec elapsed
```

]

---

### Big data, elsewhere

Same data, but on a cheap 4TB hard drive, 5400 RPM, connected via USB 2.0.

```r
ds_external <- open_dataset(
  "/Volumes/mock-external/nyc-taxi",
  partitioning = c("year", "month"))
```

```r
tic()
ds_external %>%
  filter(total_amount > 100, year == 2015) %>%
  select(tip_amount, total_amount, passenger_count) %>%
  # calculate a new column, on remote disk
  mutate(tip_pct = 100 * tip_amount / total_amount) %>%
  group_by(passenger_count) %>%
  summarise(mean_tip_pct = mean(tip_pct),
    n = n()) %>% collect()
toc()
```

]

```
## # A tibble: 10 × 3
##    passenger_count mean_tip_pct      n
##              <int>        <dbl>  <int>
##  1               1        13.5  143087
##  2               2        12.6   34418
##  3               5        16.8    5806
##  4               4        11.1    4771
##  5               6        18.2    3338
##  6               3        11.9    8922
##  7               0         9.78    380
##  8               7        16.3      11
##  9               9        12.7      42
## 10               8        16.5      32
```

```
## 58.802 sec elapsed
```

]

---

### We can shoot ducks with arrows

Going back to local SSD and using `arrow::to_duckdb()`, note the full `group_by()`/`mutate()` support!

```r
tic()
ds %>%
  filter(total_amount > 100, year == 2015) %>%
  select(tip_amount, total_amount, passenger_count) %>%
  # use arrow to populate directly into a duckdb
  arrow::to_duckdb() %>%
  group_by(passenger_count) %>%  # group_by mutate!
  mutate(tip_pct = 100 * tip_amount / total_amount) %>%
  filter(tip_pct >= 25) %>%
  summarise(n = n()) %>% collect()
toc()
```

]

```
## # A tibble: 9 × 2
##   passenger_count     n
##             <int> <dbl>
## 1               0     6
## 2               1  6464
## 3               2  1276
## 4               3   324
## 5               4   205
## 6               5   345
## 7               6   303
## 8               7     1
## 9               9     1
```

```
## 7.468 sec elapsed
```
]

---

### `pins`

Now, as far as using `arrow`, since they are single files (eg `feather` or `parquet`), you _could_ `pin` them

Note, `pins` 1.0 now has native support for `feather` which is essentially an `arrow` dataframe on disk.

`duckdb` is two files, but you should just use `feather` anyway as it's fast to read, relatively efficient to store, and allows you to mix `arrow` native work along with `arrow::to_duckdb()` if you need `duckdb` querying.

You could also go `parquet` which is very efficient to store and fast to read. In `pins` you would switch from `pin_write()` to `pin_upload()`/`pin_download() %>% arrow::read_parquet()` since it's treated as a file rather than one of the native `read` file types.

---

### `pins` comparison

```r
query_feather <- function(){
  tic()
  feather_file <- pin_download(
    board_rsc,
    "thomas/big-nyc-feather")

  feather_file <- arrow::open_dataset(
    feather_file, format = "feather")

  summary_feather <- feather_file %>%
    select(fare_amount, vendor_id) %>%
    filter(vendor_id == "1") %>%
    summarise(mean = mean(fare_amount)) %>%
    collect()

toc()
}
```

]

```r
query_rds <- function(){

  tic()

  pinned_rds <- pin_download(
    board_rsc,
    "thomas/big-nyc-rds")

  rds_file <- readr::read_rds(pinned_rds)

  summary_rds <- rds_file %>%
    select(fare_amount, vendor_id) %>%
    filter(vendor_id == "1") %>%
    summarise(mean = mean(fare_amount))

  toc()
}
```

]

---

### `pins` comparison

`feather` is native to `arrow`, so it allows for rapid file reading AND allows for partial reading, through a combination of `filter()` + `select()` + `summarize()`

So, `pins` + `feather` + `arrow::open_dataset()` allows for insanely fast queries on relatively large datasets.

```r
query_feather()
#> 10.2 sec elapsed
query_rds()
#> 14.4 sec elapsed
```

I promised you speed, but they're the same! You can't "beat" download times 🤷

---

### `pins` comparison

While you can't beat file transfer, disk space is **infinitely** cheaper than memory...

And your downloaded file still exists!

```r
file.exists("~/Library/Caches/pins/rsc-e62371cfd77db754024f9c5ed3556a73/2f2ee2e3-564a-4791-a7f3-01e22ad2939f/48597/big-nyc-feather.arrow")
```

```
## [1] TRUE
```

```r
# Windowed query
query_feather()
#> 0.554 sec elapsed

# read ENTIRE file in
query_rds()
#> 11.8 sec elapsed
```

---

### `pins` comparison

Now, you could get similar query speed ups by loading the data completely into memory 1x, but you'd have to "eat" the initial read time of 10+ seconds.

Also... now you're lugging around at least 1 Gb of data for each session... and there are _very few times_ when all of your users **needs** 1 Gb of data all at once.

By selecting "windows" of data rapidly, you get the ability to perform useful queries/summaries across large swaths of data with minimal memory load, and minimal read time.

---

### `pins` comparison

So, in your `shiny` apps:

```r
feather_file <- pin_download(board_rsc, "thomas/big-nyc-feather")

feather_ds <- arrow::open_dataset(feather_file, format = "feather")

server <- function(input, output, session) {
  # Lots more code
  feather_ds %>%
    some_queries %>%
    collect() %>%
    if(type == "plot"){
      plot_it()
    } else if(type == "table"){
      table_it()
    } else {
      work_it() %>% make_it() %>% do_it() %>% makes_us() %>%
        harder_better_faster_stronger()
    }
}
```

---

### `pins` + `duckdb`

Cached file still exists, so can be used with `duckdb` as well!

```r
tic()
feather_file <- pin_download(board_rsc, "thomas/big-nyc-feather")

feather_file <- arrow::open_dataset(feather_file, format = "feather")

summary_duck <- feather_file %>%
  select(fare_amount, vendor_id) %>%
  filter(vendor_id == "1") %>%
  arrow::to_duckdb() %>%
  summarise(mean = mean(fare_amount, na.rm = TRUE)) %>%
  collect()
toc()
#> 1.48 sec
```

---

### Pause for a second

While it's possible to have these work with `shiny` or interactive apps via `pins`, again I think it's worth considering `shiny` apps as **requiring** a proper database if working with that much data.

---

### Keeping your `pins` at a distance

If your team happens to use AWS, you can make use of [native S3 support with `arrow`](https://arrow.apache.org/docs/r/articles/fs.html)

Similar to our `pins` workflow, there is unavoidable file-transfer time BUT you can read the files remotely and you _can_ partition the data in S3.

This allows `arrow` to intelligently transfer/read only portions of the partitions as necessary, optimizing both the file transfer AND the query/read.

---

### Things we didn't talk about

* Snowflake (uses `arrow` under the hood)

* Dremio (uses `arrow` under the hood)

* Rinse and repeat across many other databases/data warehouse engines, as `arrow` is quickly becoming a standard tool for lots of database/data warehouse/data lake providers

The core idea is if you have a "real" data warehouse or data lake, your team has likely already invested in some way to perform queries (and you can probably just use ODBC or equivalent).

BUT if you have a need to work with large flat-files, whether extracted from your data warehouse or other methods, `arrow` and/or `duckdb` are very attractive tools.

`pins` can be leveraged along with `arrow`, but you lose a lot of the power of partitioning, since it's a single file. That being said, with `shiny` app sized data, you should be more than fine with a single file.

---

### Should you use `arrow` with `shiny`?

* If you are relying on CSVs today, sure `parquet` is an efficient storage format, meaning it will be "cheaper" to move around and faster to read, and can still be used via `pins`

* BUT should you move around 1 Gb flat files for `shiny` apps with _many_ users? Probably not.

* Could it be useful for large-data `shiny` apps with low user counts? 🤷 Possibly but not necessarily something I'm keen on suggesting as 'ideal'

* But this requires you passing around a large flat file, and typically a dedicated database table will be a better option

---

### Using a dedicated database, aka 3 Tier Architecture

* **Presentation Tier:** Javascript/HTML/CSS, ie Front-end, processed in client browser

* **Application/Logic Tier:** R/Python, processed in memory, meaning `shiny`/`dash`/`streamlit` OR connections to `plumber`/`flask`/`FastAPI`, ie it can include "microservices" or be a "monolith"

* **Data Tier:** Database/SQL/etc, processed in the database backend

![](https://docs.aws.amazon.com/whitepapers/latest/serverless-multi-tier-architectures-api-gateway-lambda/images/image2.png)

Expanded in greater detail at: [https://db.rstudio.com/best-practices/dashboards/](https://db.rstudio.com/best-practices/dashboards/)

---

### Summary

- For both R/Python, `arrow` and/or `DuckDB` can make working with _larger_ out of memory data possible and much faster for interactive work

- `arrow` alone can push `filter()`/`select()` calls _into_ the data, along with basic `group_by()`:  `mutate()` + `summarize()` to data on disk

- `duckdb` further adds full `dbplyr` support, and can be used with native `arrow` BUT it doesn't _require_ `arrow` in the process. Could be a standalone local database on disk.

- If you use `pins`, you can _also_ use `arrow` via `parquet`/`feather` for lightweight files, fast full or partial reads

- `arrow` + `duckdb` with large data are likely not appropriate for high-concurrency `shiny` apps

- Large datasets with potentially high concurrency is where a database (and `dbplyr`) makes sense, and maybe that database is columnar/uses `arrow` behind the scenes!

---

### Links

- [`arrow` docs](https://arrow.apache.org/docs/r/articles/dataset.html)
- [`arrow` 6.0 pre-release news](https://github.com/apache/arrow/commit/62ff6590fc43e83381a8ec722a9c241a49619c78)
- [`duckdb` R package](https://duckdb.org/docs/api/r)
- [`dbplyr`](https://dbplyr.tidyverse.org/)
- [`db.rstudio.com`, Enterprise Ready Dashboards](https://db.rstudio.com/best-practices/dashboards/)
